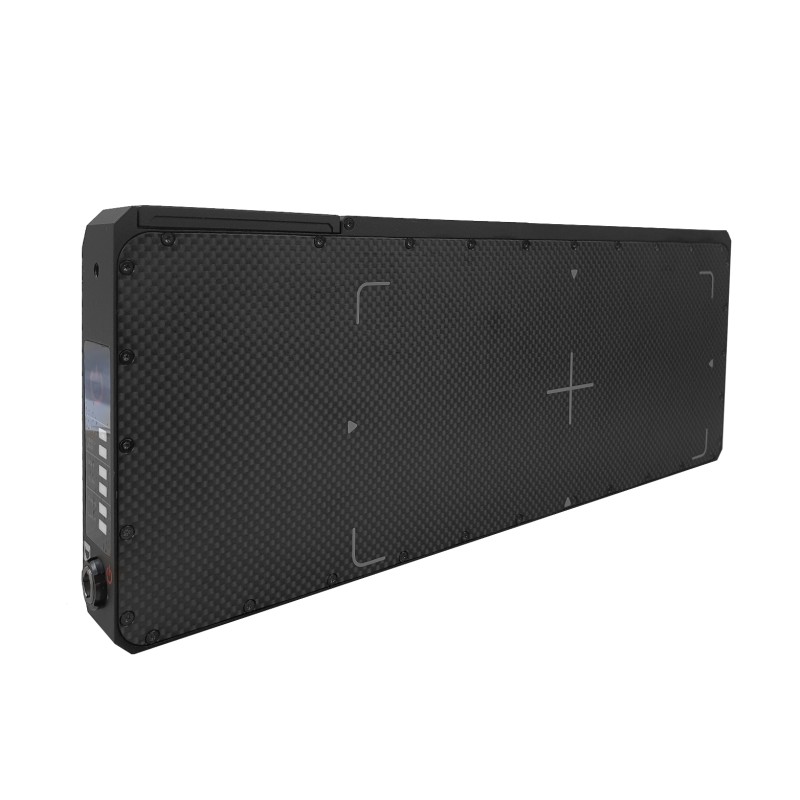

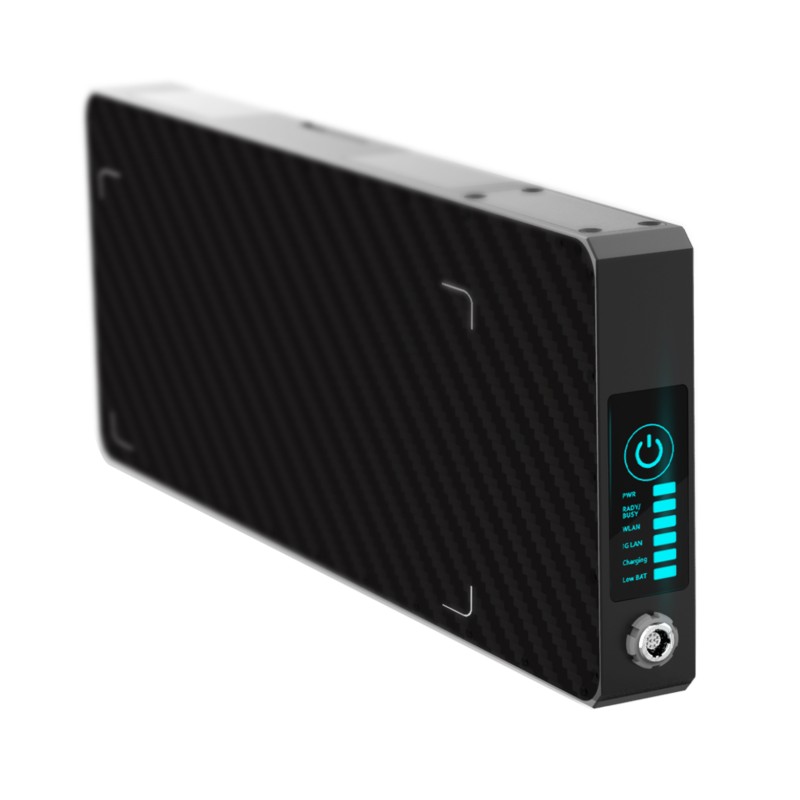

Scansilc 1024 NDT

Compact 10 x 24 cm X-ray Imager

The new Scansilc 1024 will be a perfect choice for industrial radiography and weld inspection. It has the same active area size as common films used in this field, which means it can provide practical DR technology without disrupting your workflow when switching over from CR or Film based techniques.

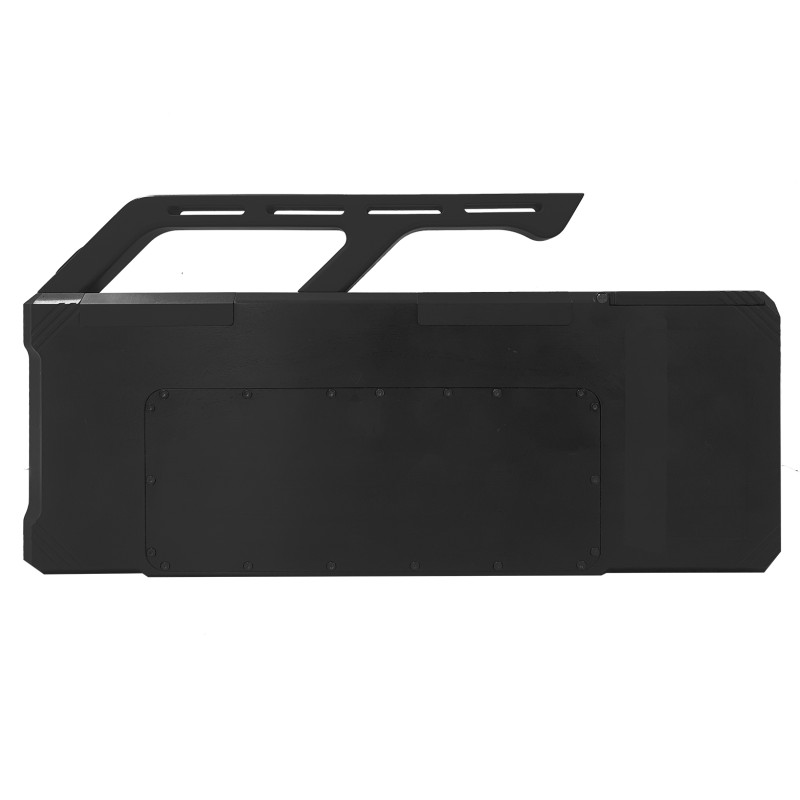

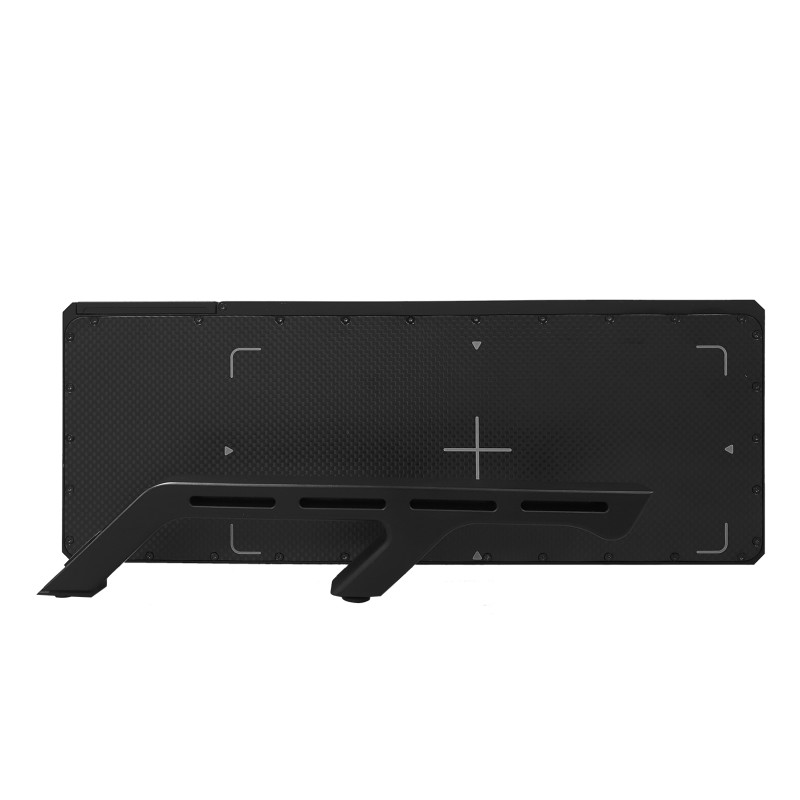

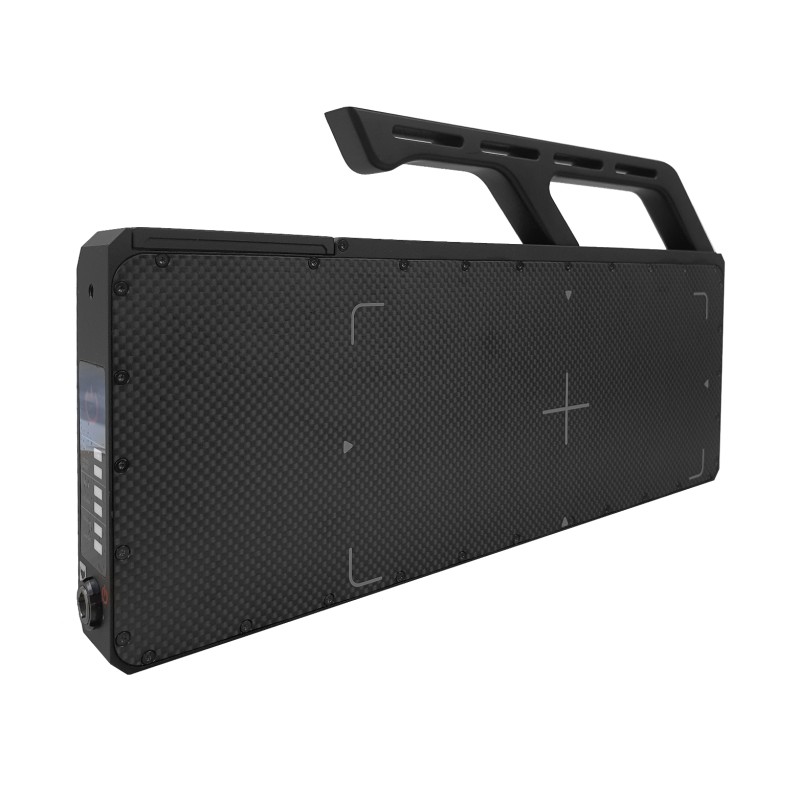

A reliable and portable solution for harsh industrial environments. The ultra-lightweight design, with modular handle, allows for easy insertion into pipes - making this ideal for field inspection.

The Scansilc 1024 provides high quality and high resolution images, with a 76㎛ pixel pitch and a resolution of 1,280 x 3,072 pixels.

A Scansilc DR System is much more cost-effective, compared with the associated lifetime costs of a film-based solution.  It ensures an easy workflow and fast deployment time.

  • The active area is the same size as many common films used in industrial radiography
  • Pixel Pitch: 76 microns
  • Active Image Area: 10 x 24 cm
  • Weight: 2.2 kg (4.9 lbs)


Standard system configuration

Compact 10 x 24 cm X-ray Imager

  • Golden XR150
  • 1024 Panel
  • Tablet Viewer/Controller
  • Multiple mounting and optional accessories available

Active Image area

97 x 233mm

Pixel Pitch

76 microns

Bottom dead area


Environmental Protection

IP67 (Dust and Water Resistance)

Image Resolution

1,280 x 3,072


335 x 127 x 30 mm


  • System with Golden Generator
  • Imaging Panel standalone existing generator and controller
