Scansilc 8686

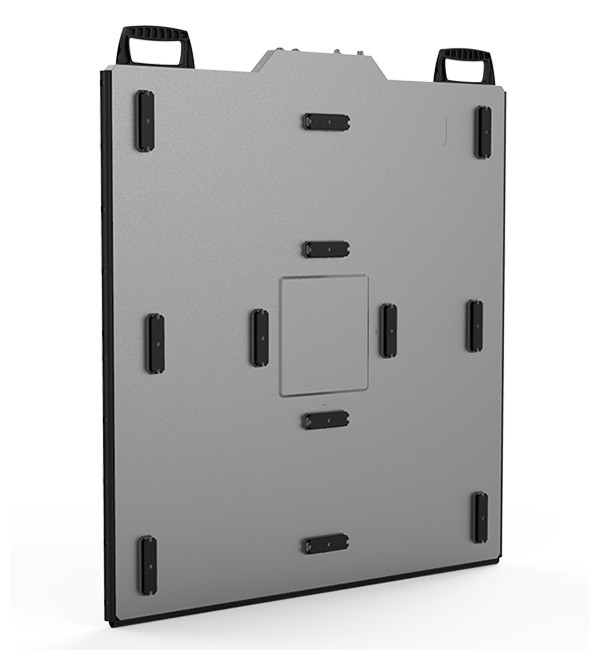

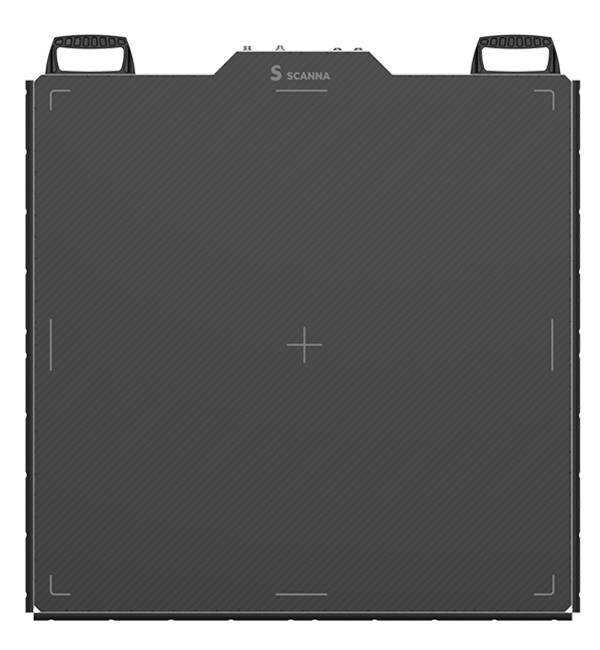

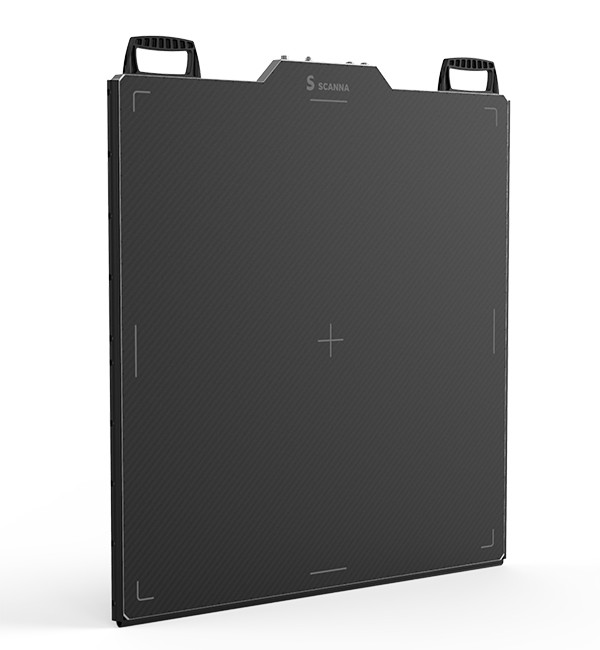

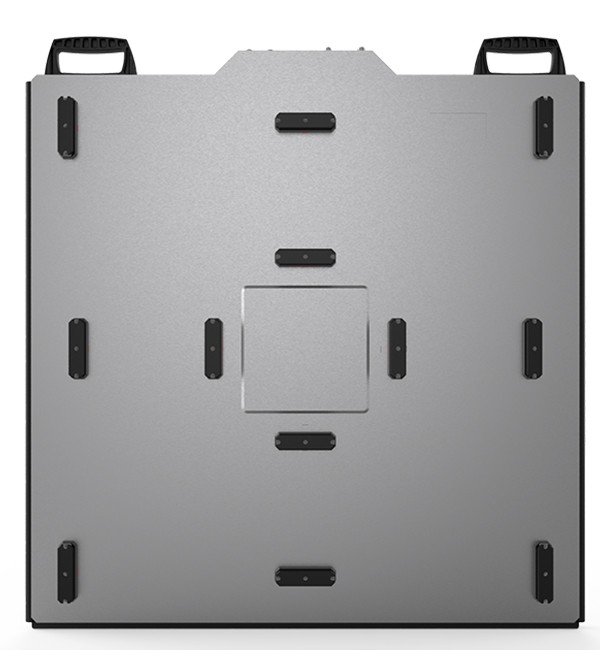

Scansilc 8686 is a supersized, large scale imaging panel

Scansilc 8686 is a supersized x-ray detector capable of covering objects up to 86 x 86 cm (34" x 34") in a single exposure

The panel connects directly to a laptop and generator and even using a single low dose x-ray exposure, generates a huge high-resolution quality image in just a few seconds.

The panel is more than 4 times larger than conventional ‘large format’ X-ray systems and approximately 1” thick, allowing operators to check large areas quickly and with the minimum of hassle.

The system can operate with both pulsed and CP x-ray generators and offers 16 bit, 140 micron high resolution images.

  • High definition image quality of 140 microns - 3.5 lp/mm.
  • Image Resolution: 6144 x 6144
  • Active Image Area: 860 x 860 mm


Standard system configuration

Scansilc 8686 is a supersized, large scale imaging panel

Image Area

860 mm x 860 mm (34" x 34")

Pixel Pitch

140 μm


6144 x 6144 pixels

Physical Dimensions

899.16 mm x 899.16 mm x 20.07 mm (35.4" x 35.4" x 0.79")


18 kg (39.7 lbs)

Environmental protection



  • System with Golden Generator
  • Panel only (AED only)
