Scansilc NDT X-ray Panels

Trusted in defence and security applications worldwide – Scanna now brings their expertise to non-destructive testing (NDT)

Scanna has been designing and manufacturing portable x-ray systems and detection equipment for the Defence and Security sectors for over 30 years, now Scanna are bringing their quality, reliability and expertise to the world of NDT.

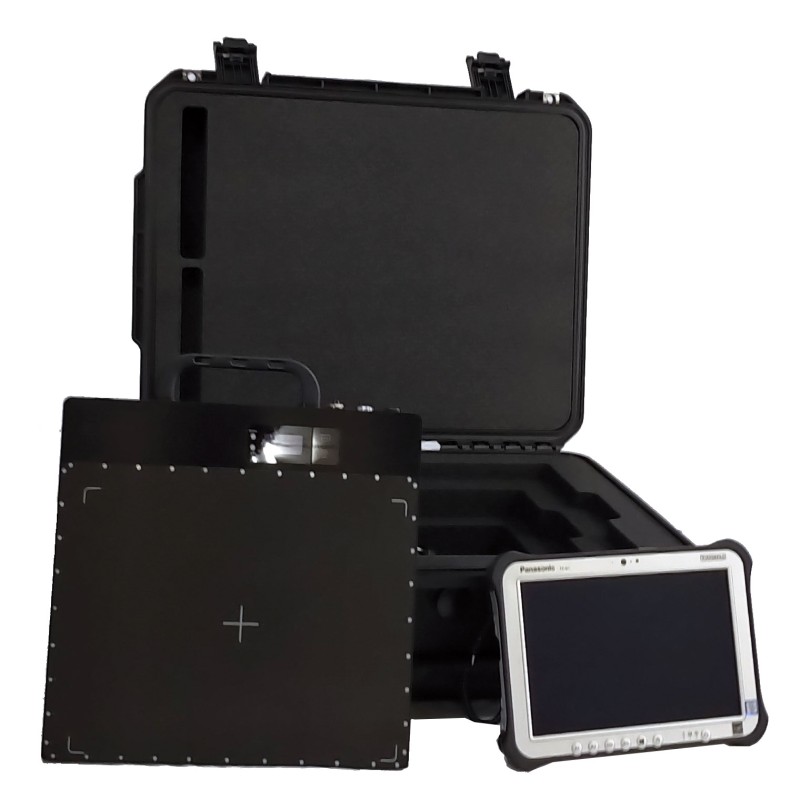

Scanna design, manufacture, service and support a comprehensive range of ruggedized, portable and static digital radiography systems for NDT applications. By working closely with our customers, we provide tailored solutions to meet specific challenges. Scansilc NDT X-ray systems are a packaged solution including a panel, generator, tablet/PC and software.

The integrated design of the Scansilc panels means fewer components and enables Scanna to offer smaller, lighter systems than other ruggedized portable X-ray units available on the market.  Scansilc NDT Imagers have near edge-to-edge imaging, and are impact and drop tested. These unique IP67 rated panels are designed for use in all weather conditions and provide protection from mud, rain and even snow without any additional protective cover.

Scansilc NDT x-ray systems offer a best-in-class combination of high image quality and rugged NDT field performance. They are designed to deliver reliable results very quickly, and can operate up to a full day on battery power alone. Scansilc panels are highly sensitive which means they can operate on lower x-ray exposure times without any loss of detail. The slim form factor of the Scansilc Panels makes them suitable for sliding into tight gaps and can operate via cable or wire-free to allow for fast place and fire operation and full flexibility of movement.

Without compromising reliability, Scanna's portable, high-performance, unique X-ray systems ensure simplicity and dependability. Scansilc NDT X-ray systems offer a durability and robustness which ensures image quality even in the most challenging environments.

NDT applications include:

  • Oil & Gas

  • Munitions

  • Concrete and Construction

  • Energy

  • Transport

  • Art & Archaeology

Digital Radiography in NDT enables:

  • Preventative maintenance to keep your assets safe

  • Safe manufacturing

  • Quality Assurance

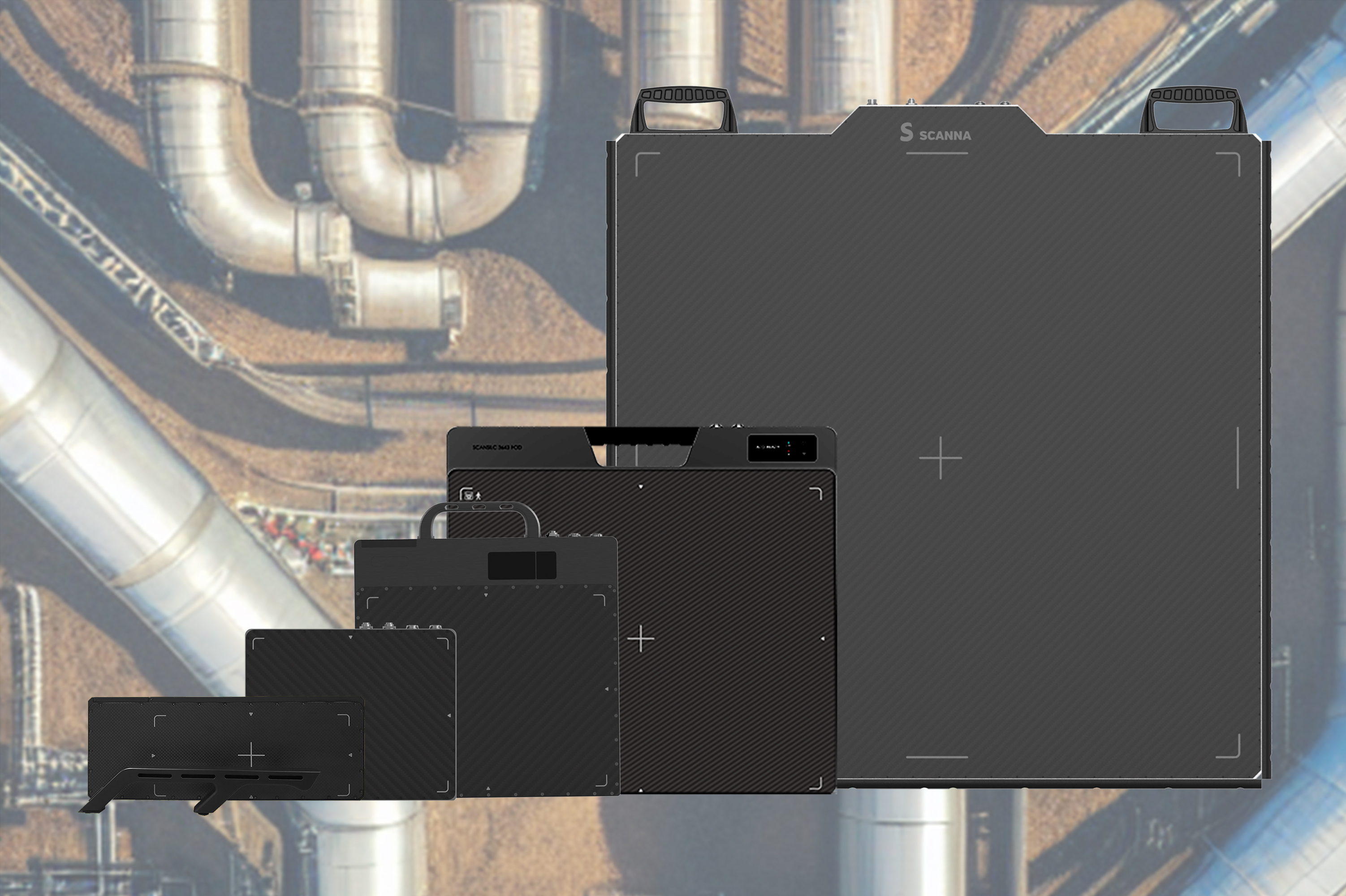

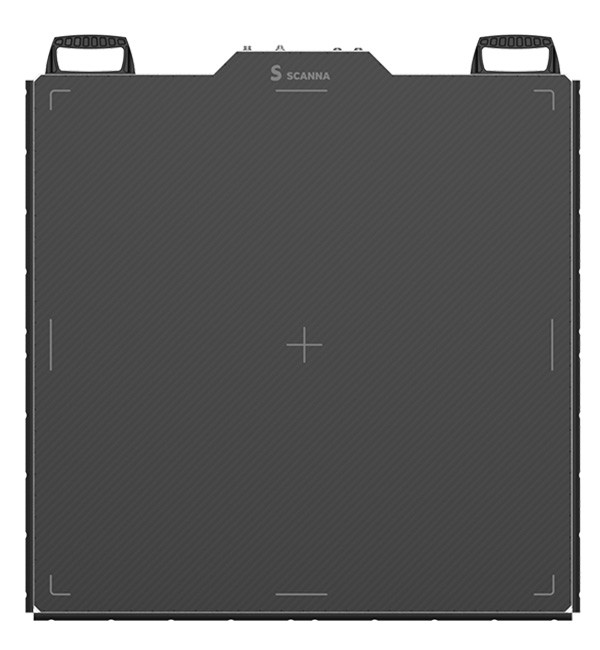

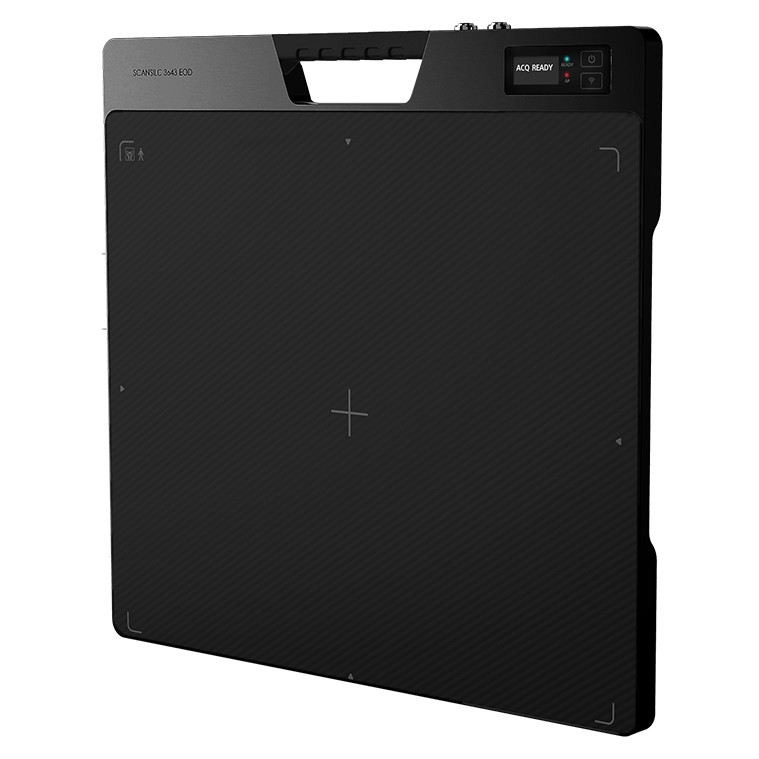

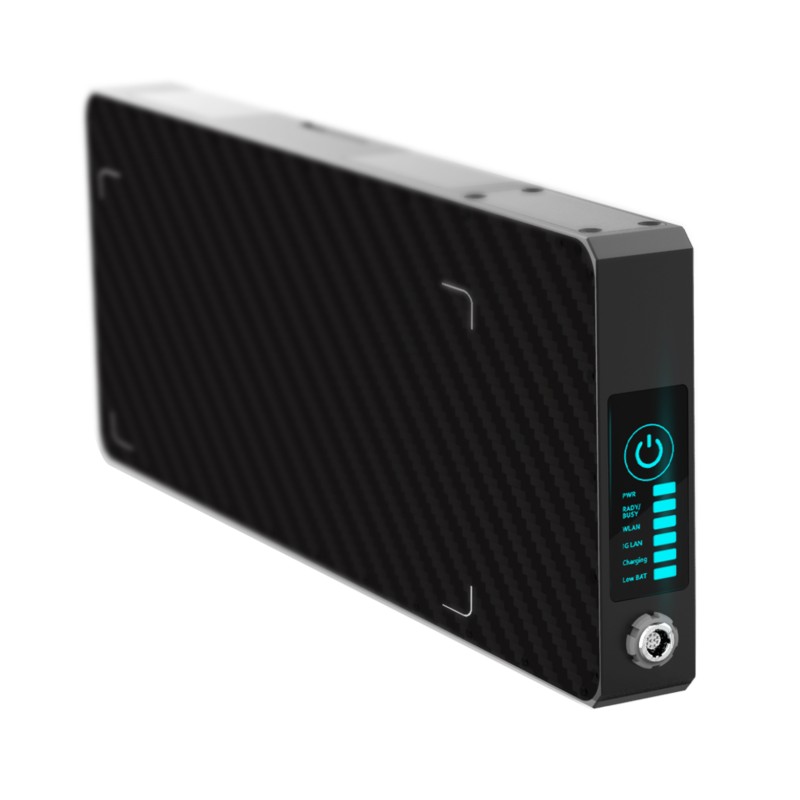

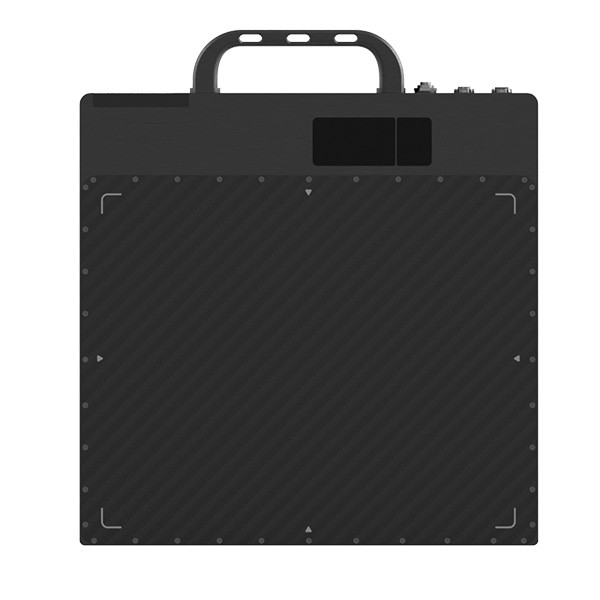

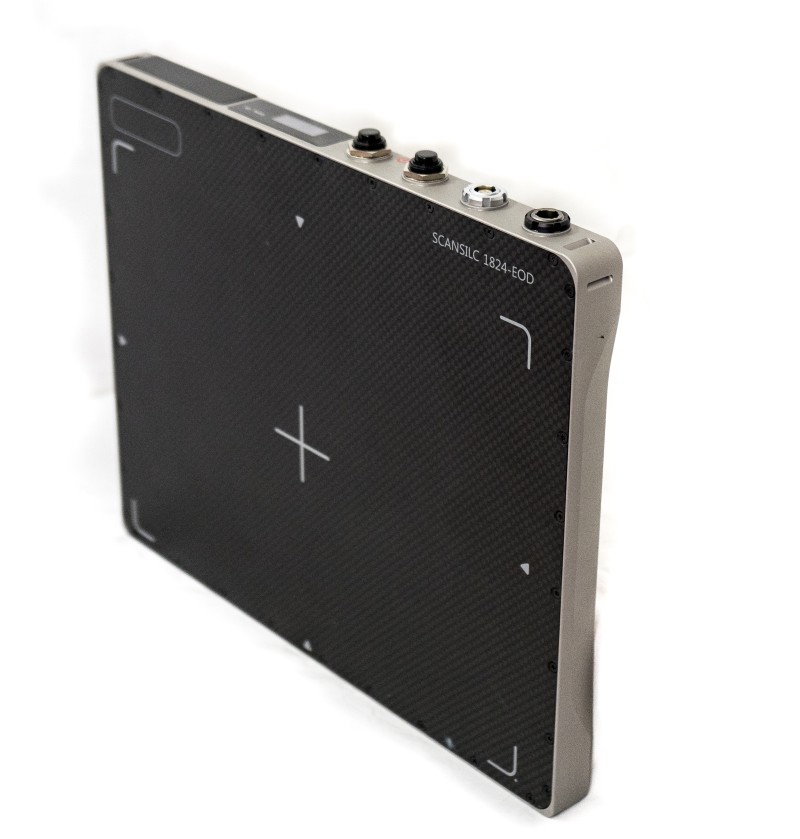

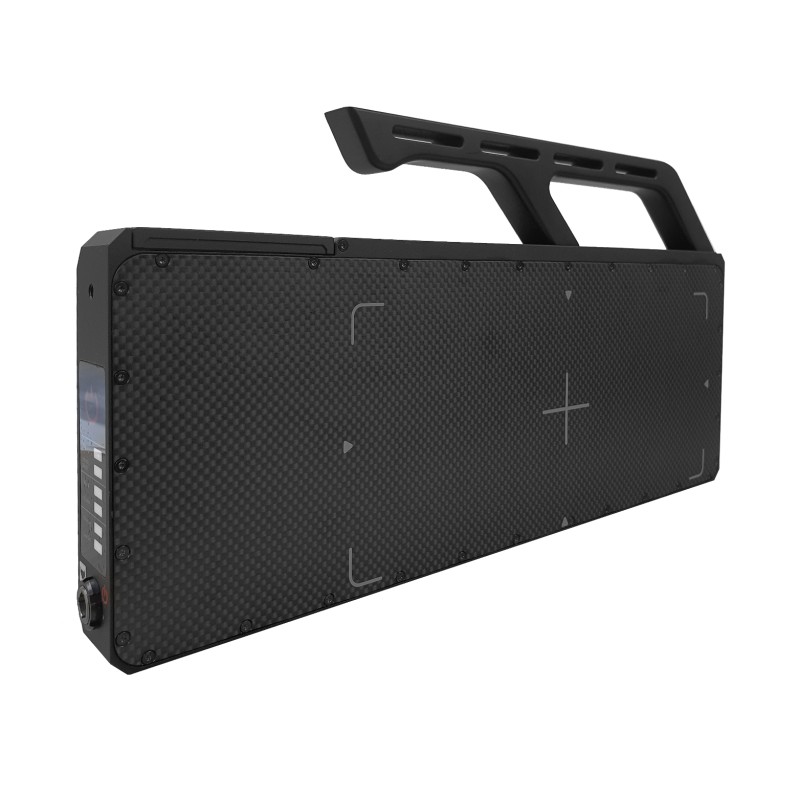

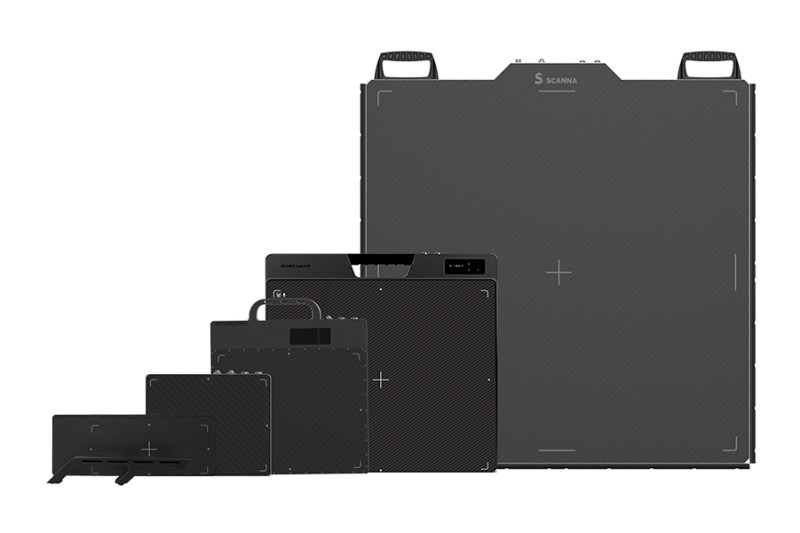

  • Range of sizes: 10 x 24 cm, 18 x 24 cm, 24 x 30 cm, 36 x 43 cm and 86 x 86 cm
  • High resolution - 76 and 140 microns (6.5 and 3.5 lp/mm)
  • Impact and drop resistant to 1m
  • Dust, dirt and water resistant to IP67
  • Compatible with CP, Pulsed and Gamma X-ray sources


Standard system configuration

Trusted in defence and security applications worldwide – Scanna now brings their expertise to non-destructive testing (NDT)

  • Detector panel
  • Controller
  • Generator
