Computed Radiography systems designed to withstand the wear and tear of Industrial NDT

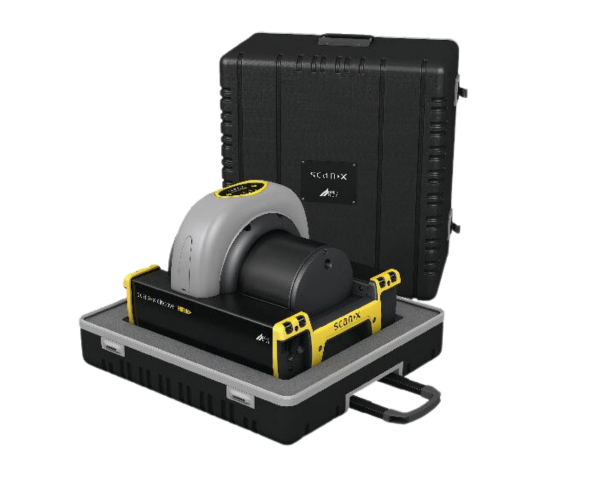

ScanX Discover CR systems deliver outstanding digital images in just a few seconds. The images have a consistent quality so that results are constantly repeatable and critical decisions can be taken in real time. Portable, compact and weighing just 21kg the ScanX Discover models offer a mobile and extremely rugged solution for demanding NDT environments. With an optional Li-Ion battery pack, the scanner can be used independent from a power supply, ideal for field inspection.
- Ruggedized for harsh conditions
- Easy to use - acquire an image in 3 steps
- For use with X-ray and gamma sources including Selenium-75, Iridium-192 and Cobalt-60
- Economic benefits - reusable image plates and no processing/chemical costs

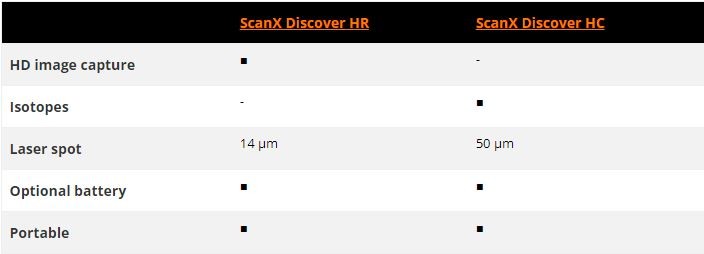

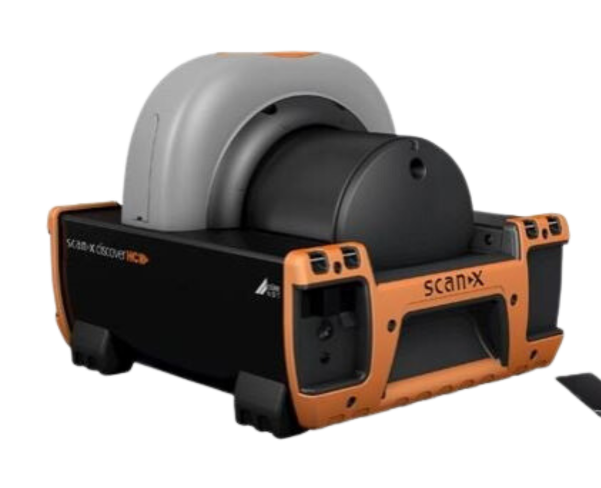

- Laser spot size 14 μm (ScanX Discover HR) / 50 μm (ScanX Discover HC)
- Dimensions (W x L x H) 39.4 x 45.7 x 35.6 cm (15½” x 18” x 14”)
- Scans imaging plates up to 35 centimeters (14 inches) wide and of any practical length, including custom shapes and sizes
- The flexible imaging plates conform to the shape of the object
