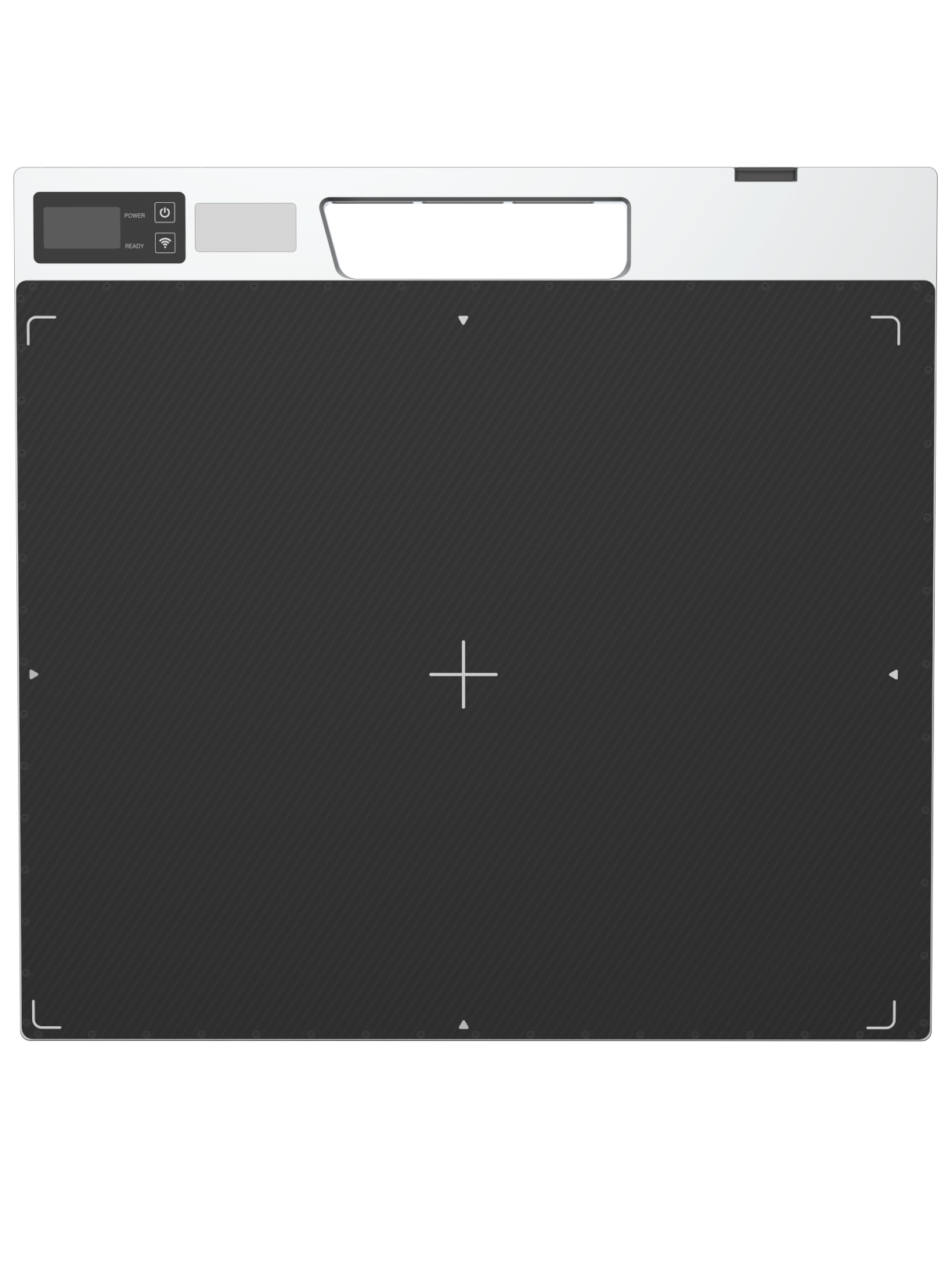

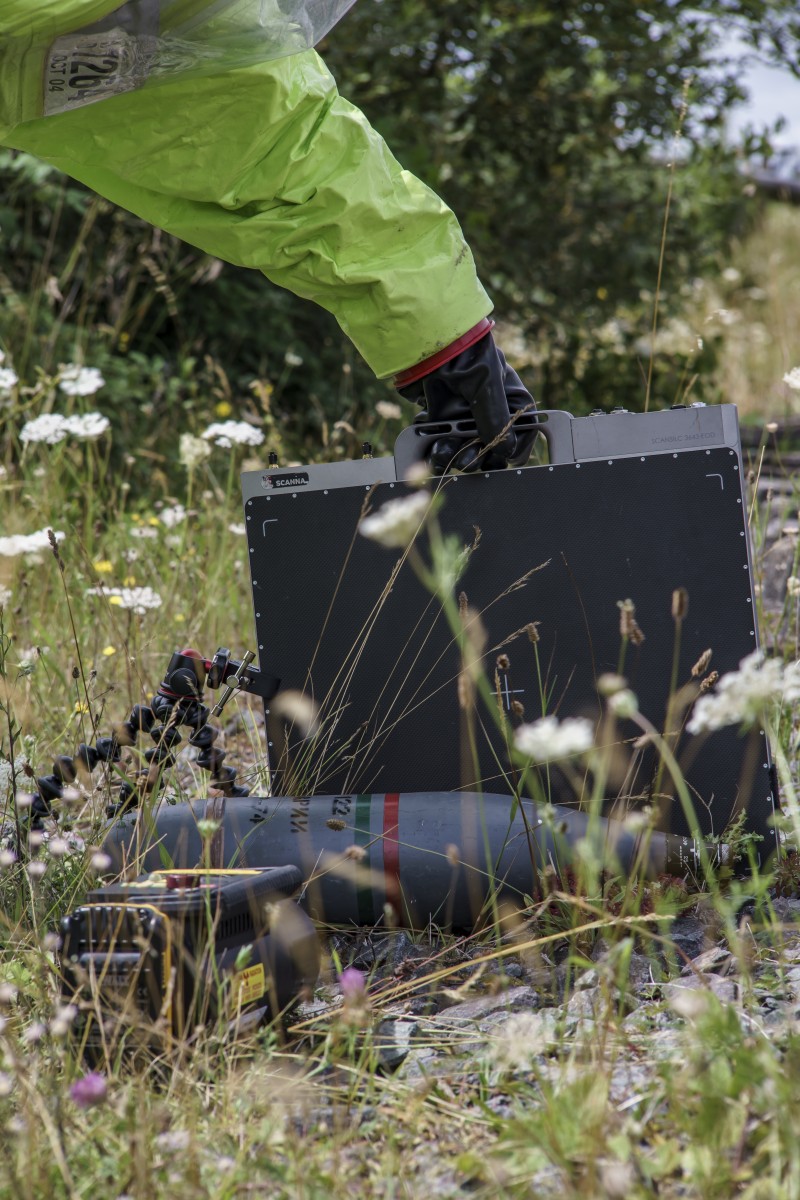

Scansilc 3643U

SCANSILC 3643U is a robust, large format x-ray panel for security and defence x-ray applications. The panel is designed for harsh environments, is dust and water tight, impact and drop resistant to 1m. We use intelligent control circuitry within our x-ray panel instead of a separate communications box to provide fast, problem free deployment.

The imaging area is 353 x 430 mm and offers 16 bit, 100 micron high resolution images.

SCANSILC 3643U is compatible with both pulsed and CP x-ray generators. Operators can control the system in synchronised mode from a tablet or laptop without needing any extra interface communications box. Its stand-alone (AED) mode provides the option to control and trigger the X-ray source manually with cable or wireless data transmission back to the viewer. In Storage mode, you can collect images completely cable and wi-fi free on the X-ray Panel for connection, selection and download to a controller on demand.

Two in-panel hotswappable batteries allow for extended field operation.

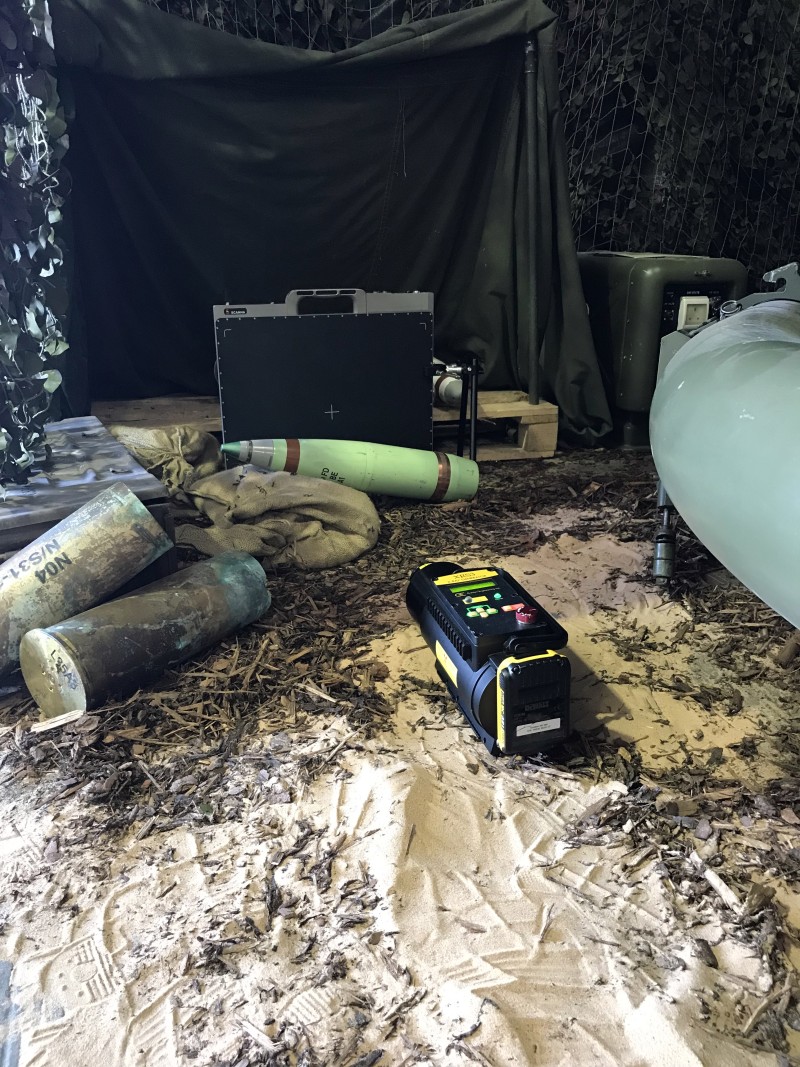

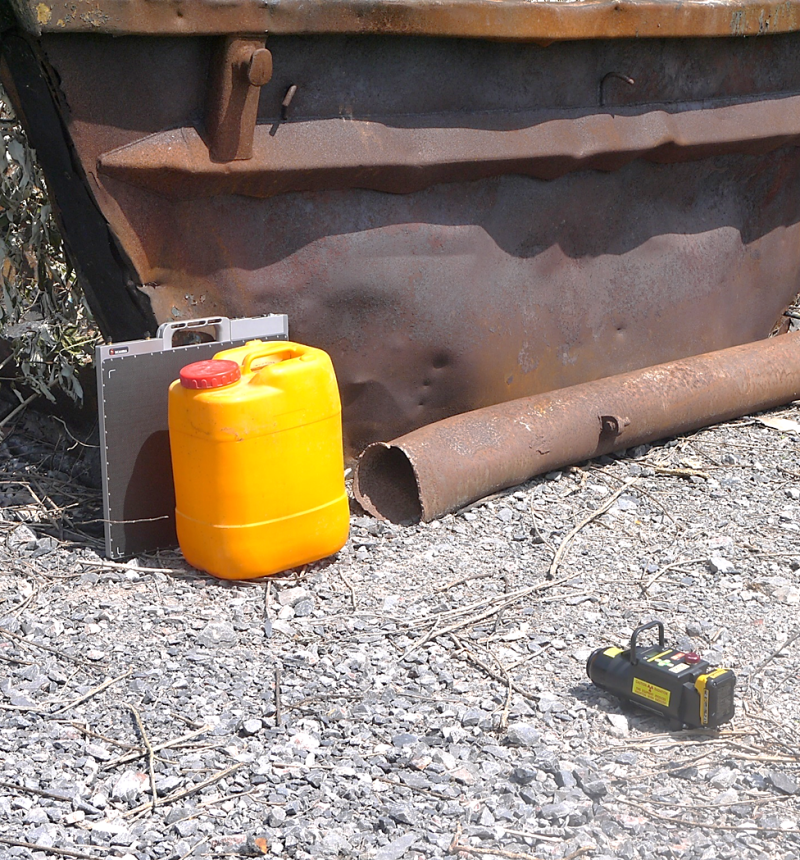

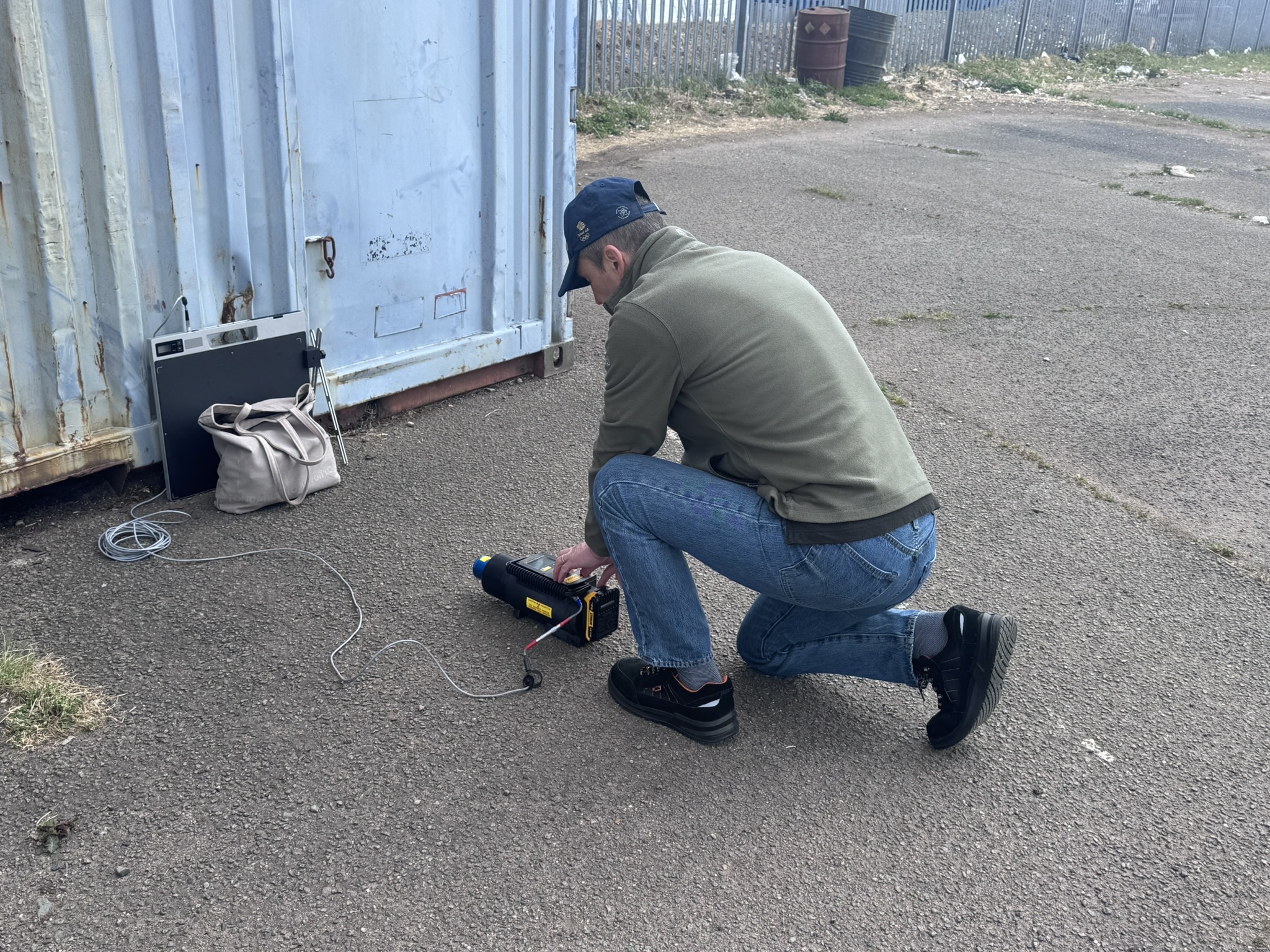

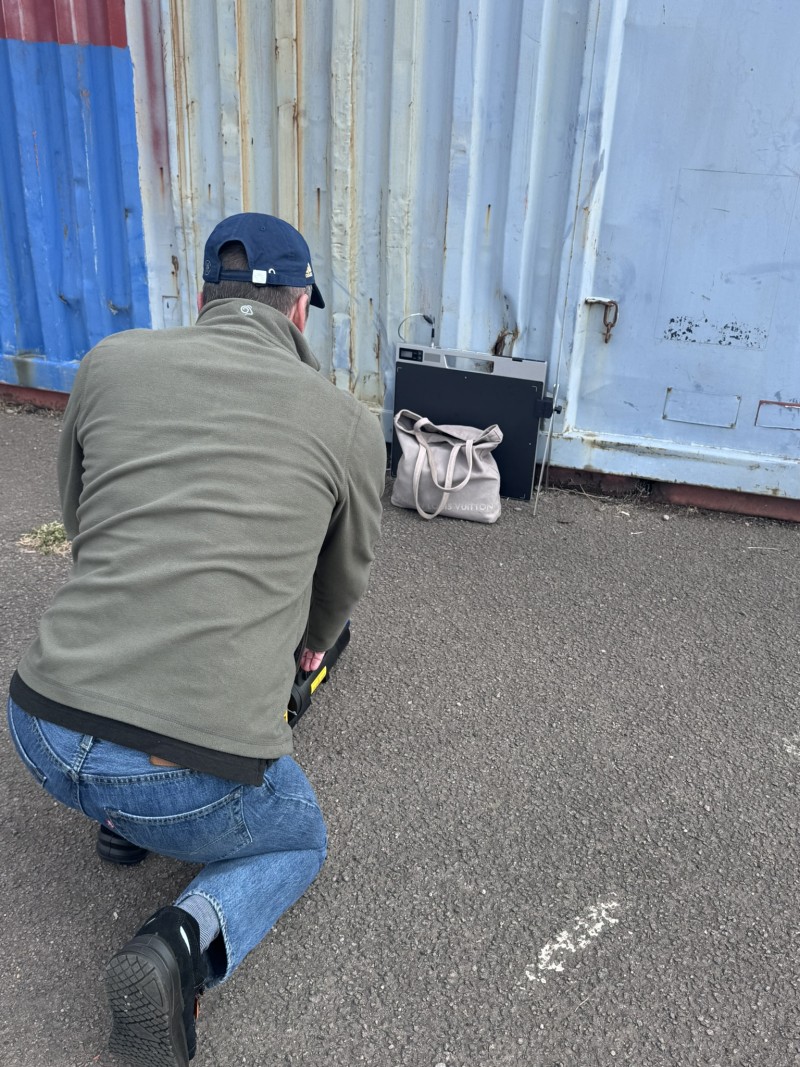

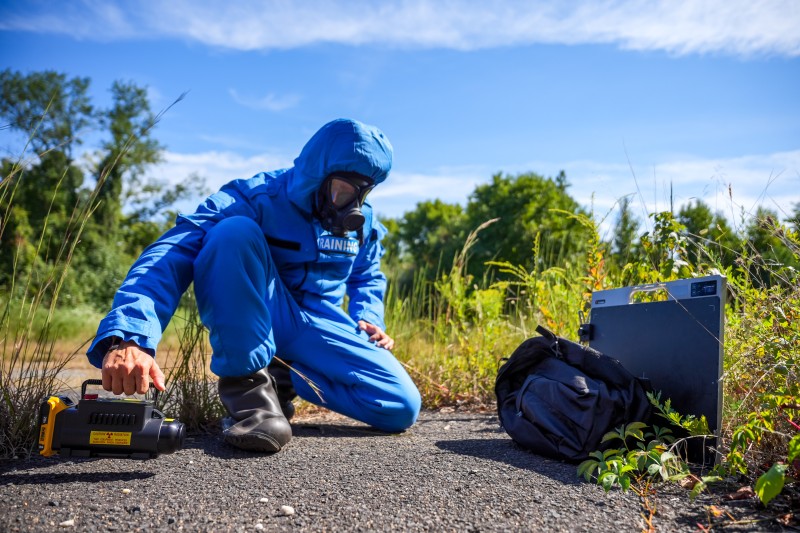

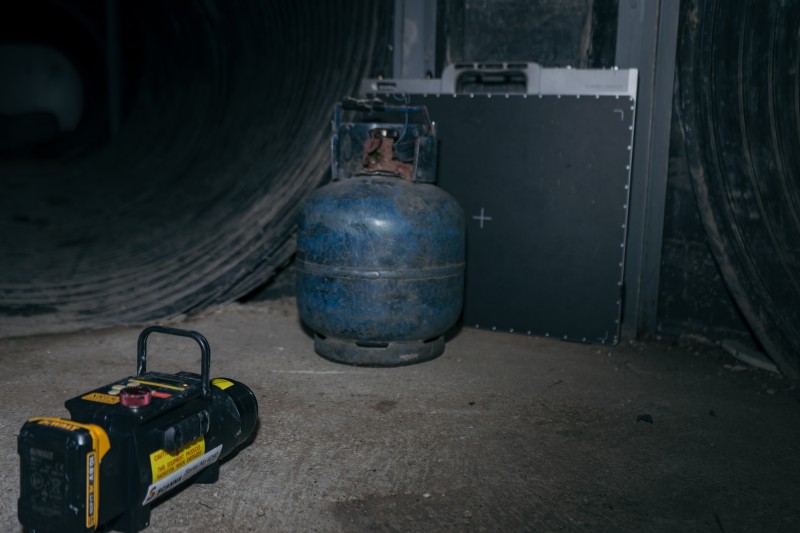

NOTE: Some operational images may still show previous X-ray panel designs. We are in the process of updating our materials, and new images will be added soon.

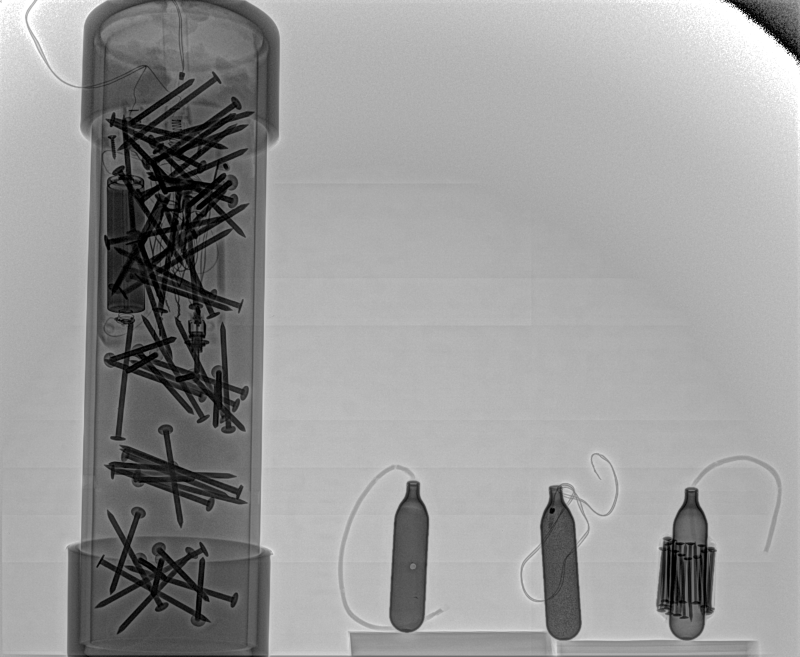

  • Super high definition image quality of 100 microns - 5 lp/mm.
  • Uniquely designed for security applications - not a fragile medical/veterinary panel in a protective cover
  • Ruggedised Unibody design - drop tested to 1m (3 ft) on all 4 corners

Technical

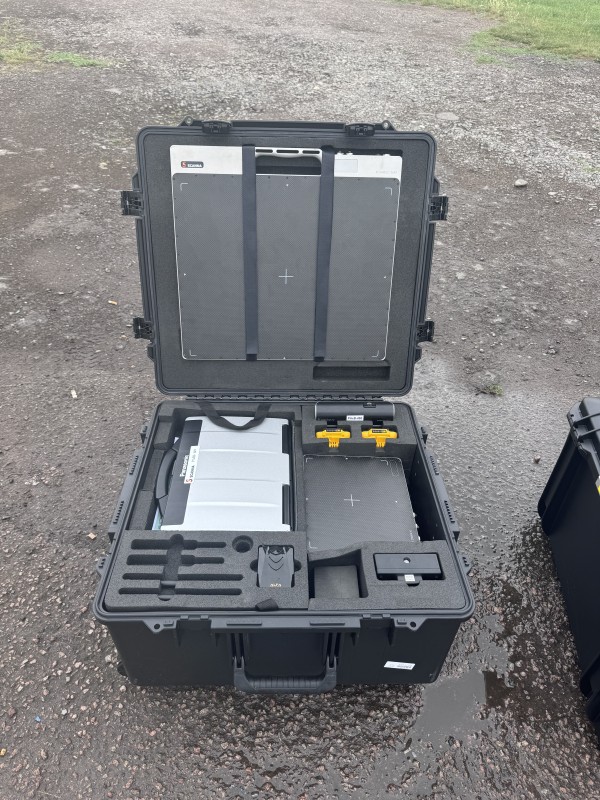

Standard system configuration

Scansilc 3643U

  • Dimensions: 36 x 43 cm
  • Active Image Area: 353 x 430 mm
  • Pixel Pitch: 100 micron
  • Resolution: 5 lp/mm
  • Physical Dimensions: 456 x 435 x 20 mm
  • Weight: 3.9 kgs
  • Environmental Protection: IP67 (Dust and Water Resistance)
  • Drop Test: Over 1m on all 4 corners without any added cover or protection

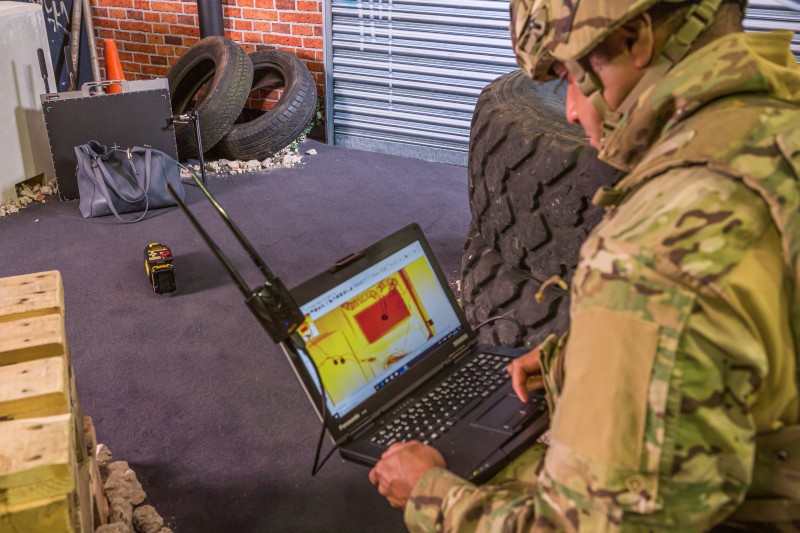

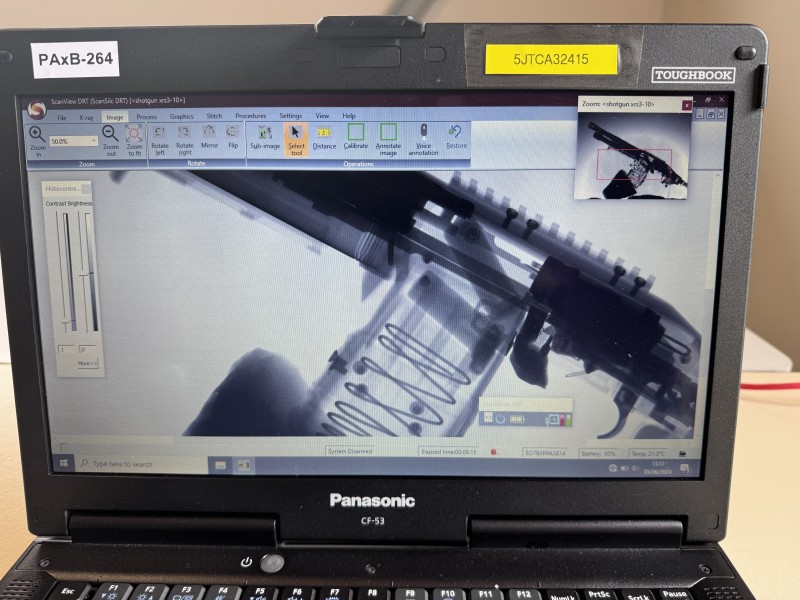

Intelligent Panel Electronics

Unique control of the image panel and x-ray generator safely from the tablet/laptop without any additional bulky interface box, interface cables and connectors to carry and connect.

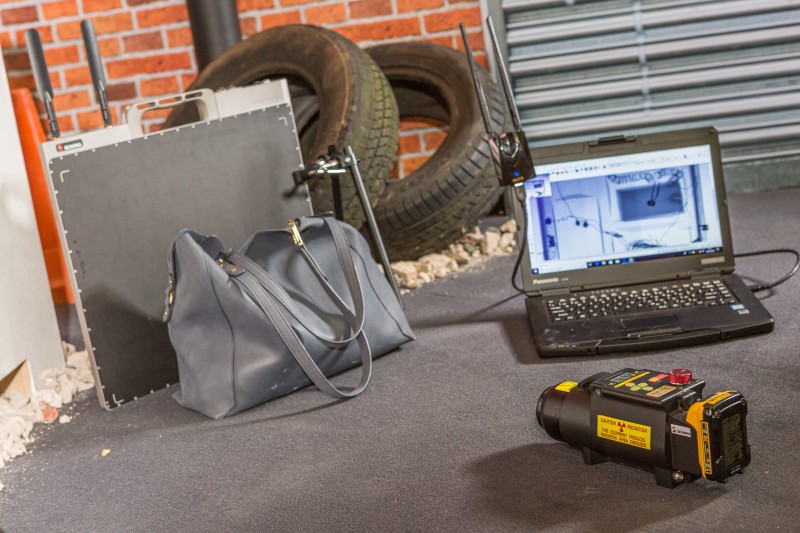

Multiple modes of operation

  • Full synchronized wired or wireless control from a tablet/laptop
  • AED (automatic exposure detection) mode with manual firing of the X-ray generator and cable or wireless image transmission
  • Storage Mode: Collect and store images on the Scansilc panel. Connect to controller to view and select images for download on demand

Ingress Protection

IP67 environmental protection against dirt, dust and water ingress without any added protection. .P68 connectors.

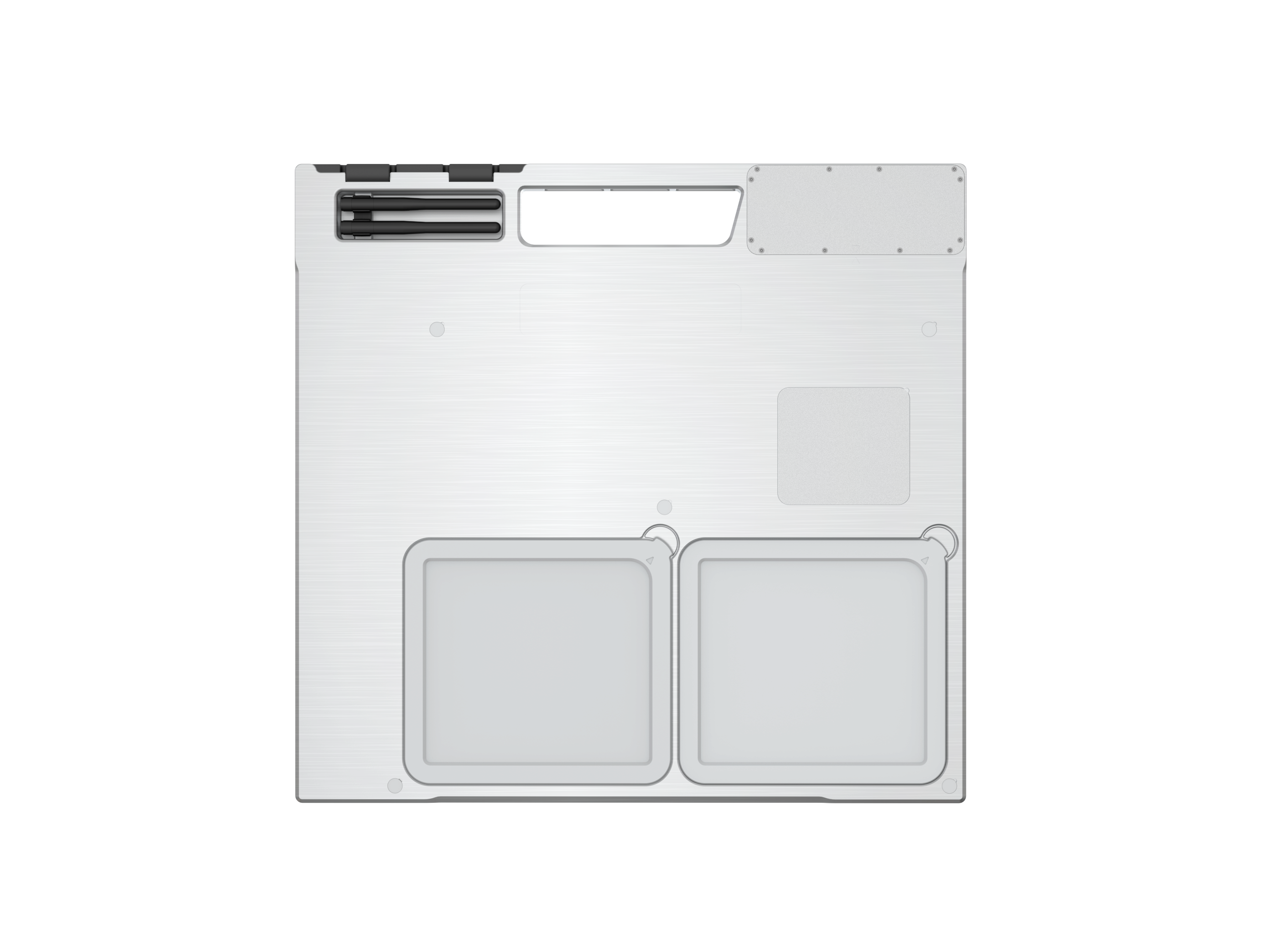

Long Battery Life

Dual in-panel batteries and hot-swappable spare battery providing extended field operational capability.

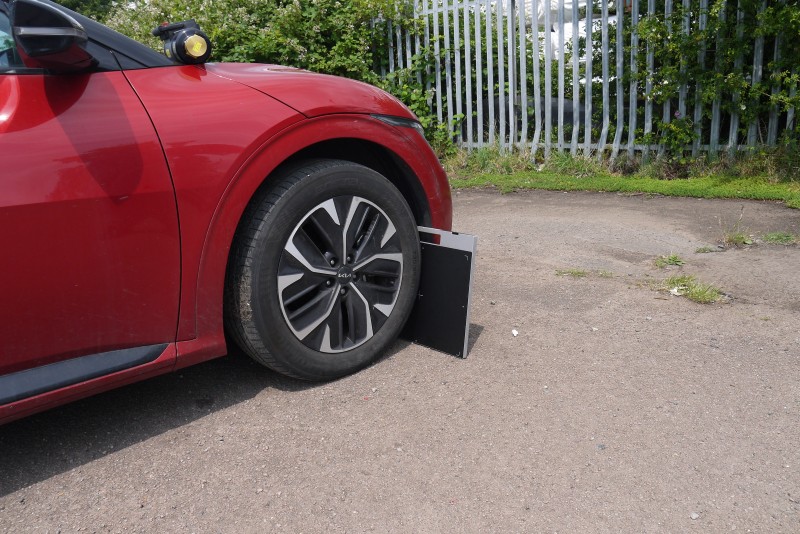

Small dead zone at bottom of panel

Options

  • A range of X-ray generator and control unit options are available
