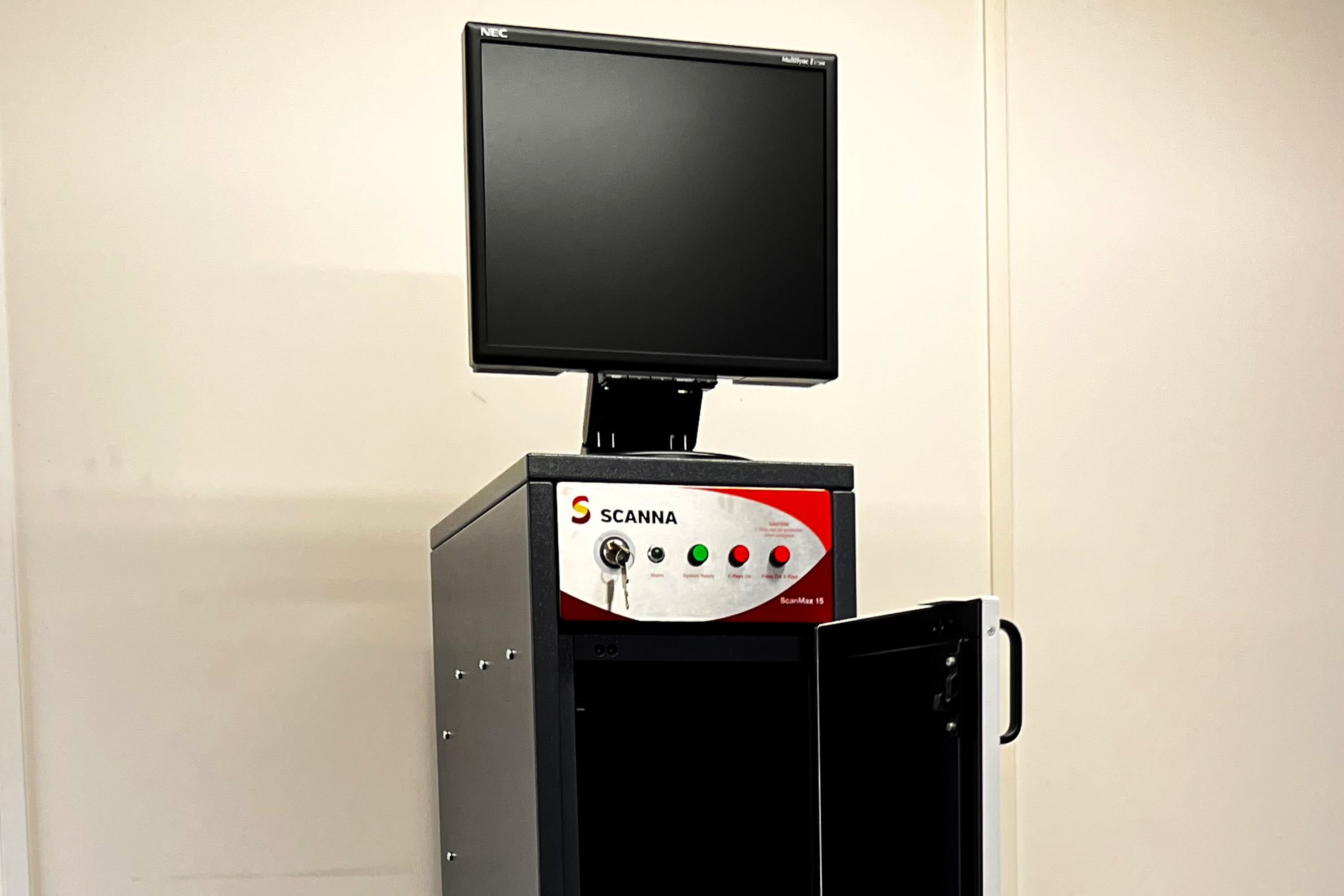

Scanmax 15 Postal Cabinet X-Ray Scanner

The compact Scanmax 15 can be situated on or under a desktop or used in conjunction with an optional wheeled trolley.

Scanmax X-ray units produce clear, definition rich, X-ray images of mail, courier and baggage items to allow operators to quickly and easily distinguish between legitimate and malicious or prohibited items.

  • 17” flat panel viewing monitor (larger screen sizes also available)
  • Keyboard Control
  • System Safety Key
  • Monitor IEC Lead
  • Mains Lead
  • Operating Manuals
  • 12 Month Back to Base Exchange Warranty

Technical

Standard system configuration

Scanmax 15 Postal Cabinet X-Ray Scanner

Power Supply

100V +/- 15% and 220V +/- 15% single phase 50/60 hz – (state voltage when ordering)

Dimensions

H: 35" x W: 12.8" x D: 19.7"

Weight

253lbs (115 kgs) unpacked. 330lbs (150 kgs) packed

Maximum Parcel Size

H: 13" x W: 9" x D: 15" cm

Screening Speed

Approx 12,000 items per hour in batches of 100

Contents of mailsack can be scanned in approximately 10-15 minutes

250 packages per hour screened individually

Radiation Safety

Scanmax 15 meets recognized international radiation standards with emissions of less than 0.1 microsieverts per hour at the surface of the machine

Options

  • 19” Monitor
  • Remote Monitor and Mouse
  • Blast Protection Cladding
  • PC Link Upgrade
  • Print, Save, Share and Stream Images upgrade (via PC Link)
  • Advanced Image Analysis Upgrade (via PC link)
  • Remote Viewing Across Network Upgrade (via PC link)
  • Remote Diagnostics Upgrade (via PC link)
