Scansilc 2430 NDT

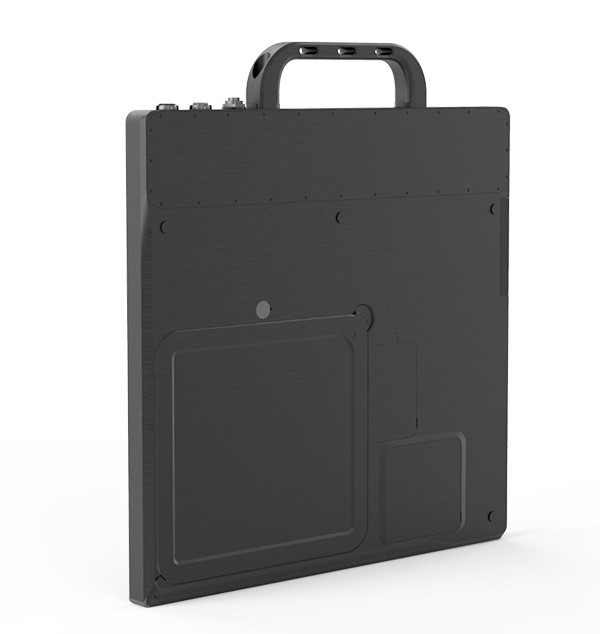

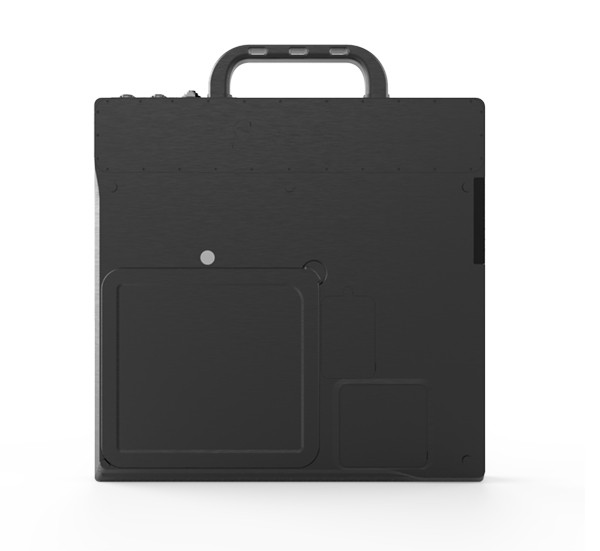

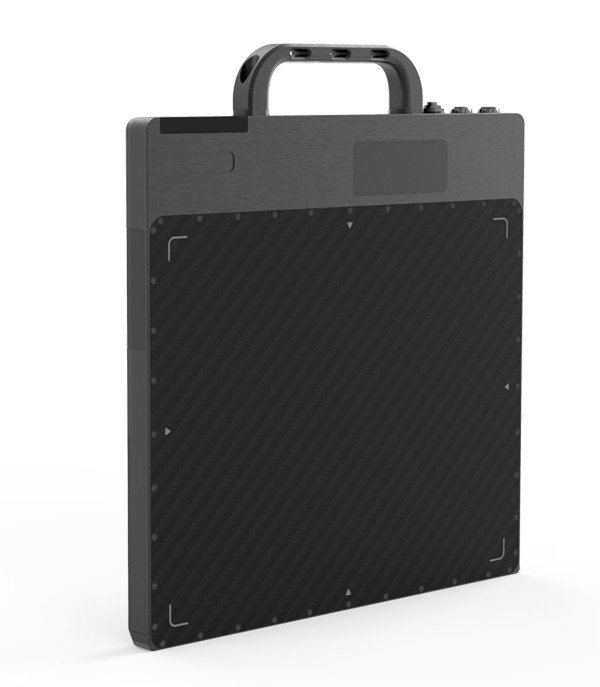

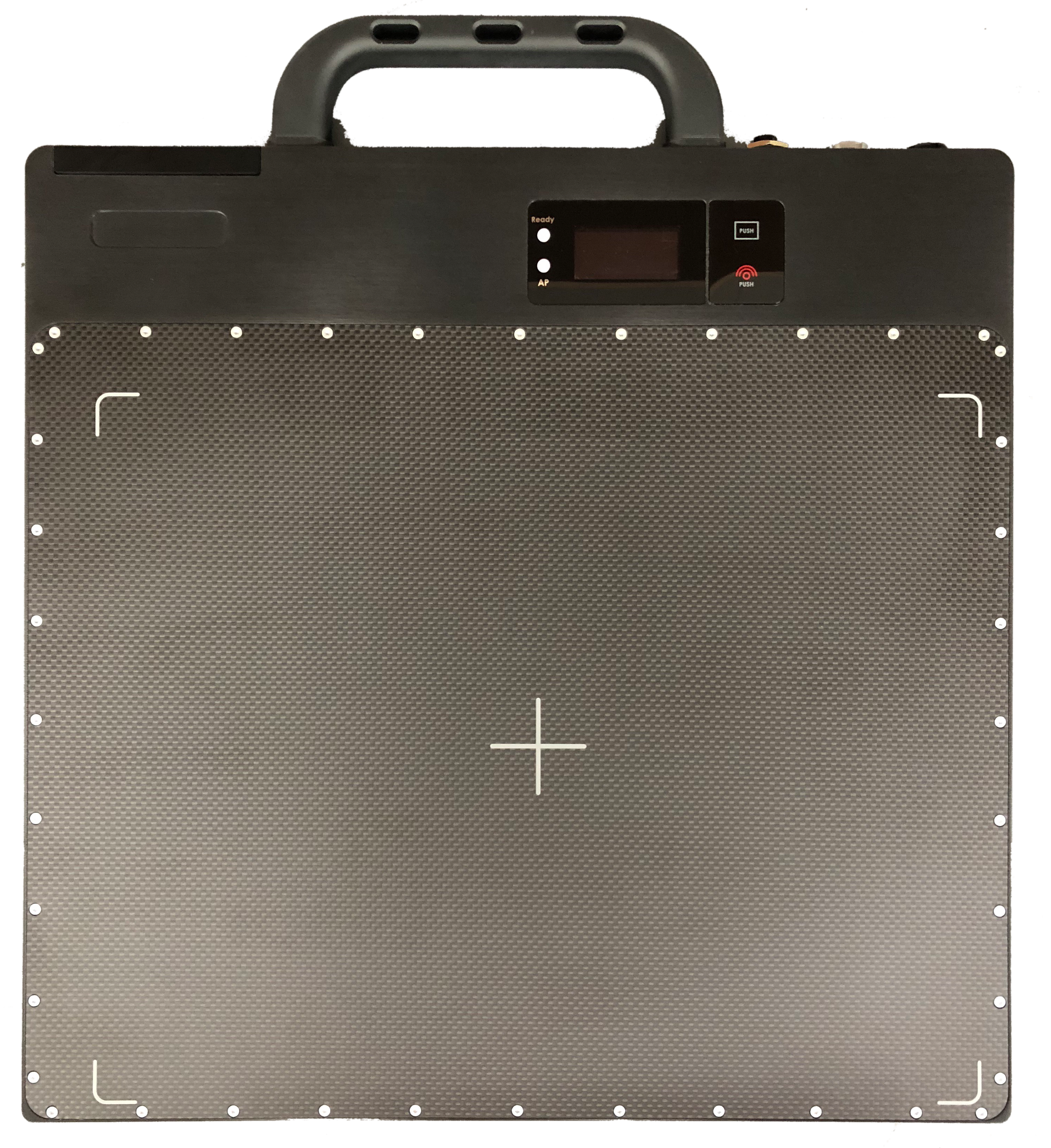

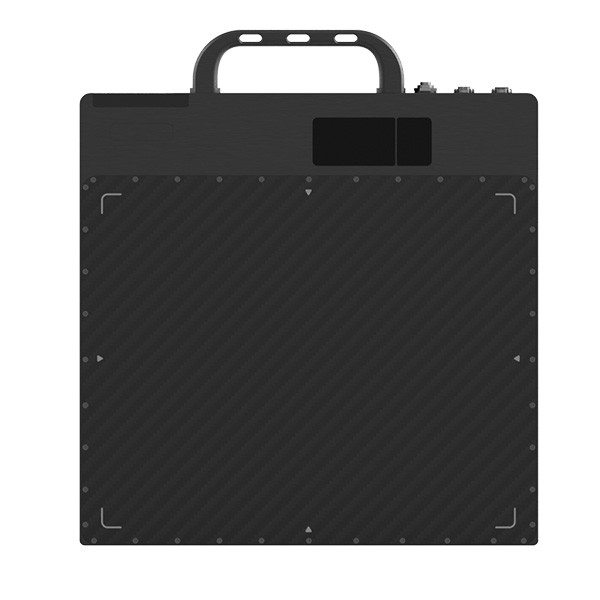

Scansilc 2430-NDT high resolution x-ray panel for NDT

SCANSILC 2430-NDT is a new robust and compact x-ray panel for industrial x-ray applications.

The panel weighs only 7lbs, is dust and water tight and drop tested to over 3 feet.

The imaging area is 11.45 x 9” and offers 16 bit, 152-76 micron high resolution images.

The system is PB protected and designed for operation with pulsed, CP and Gamma generators up to 300 kv.

Operates in AED (Automatic Exposure Detection) mode with your existing generator and laptop or can be supplied in a system with a Golden pulsed X-ray generator.

  • Best in Class Imaging Quality of 76 microns
  • Drop Tested to Over 1m on All 4 Corners
  • Ruggedised Unibody Design
  • IP67 Water and Dust resistant
  • Active Imaging Area : 291x233mm
  • Image Resolution : 3,840 x 3,072

Technical

Standard system configuration

Scansilc 2430-NDT high resolution x-ray panel for NDT

  • Golden Generator : XR150/XRS-3/XRS-4
  • 2430 Panel
  • Laptop controller Viewer

Image area

290.83 x 228.6 mm
(11.45 x 9”)

Pixel Pitch

76 μm

Resolution

3840 x 3072 pixels

Physical Dimensions

325.12 x 360.68 x 20.32 mm
(12.8 x 14.2 x 0.8 “)

Weight

3.2kg (7lbs)

Environmental Protection

IP67 (dust-tight and waterproof)

Options

  • Wired AED with any generator
  • Wireless AED with any generator
  • Sync with Golden Generators
  • Golden generator control
  • Wireless boosters available
  • Wireless Bluetooth Sync option with Golden Generators
