CR35+

CR35+

Scanna CR35+ is the latest generation digital X-ray system combining high sensitivity flexible film plates and a forensic standard X-ray image plate reader with inbuilt mini screen for fast image capture across a broad spectrum of defence and security applications.

The X-ray image plates are thin and flexible for easy access into confined areas and for wrapping around objects of interest.

Unlike electronic DR imagers, CR image plates are totally flexible and do not require any cables or batteries.

The image plates are available in a range of sizes and can be used individually or mounted in multiple combinations to check larger objects.

Unlike digital x-ray plates, digital film has no dead areas around the sides or at ground level enabling full ground level detection of objects to be achieved.

Plates can be used over 1000 times and can be erased during the scanning process to allow immediate reuse.

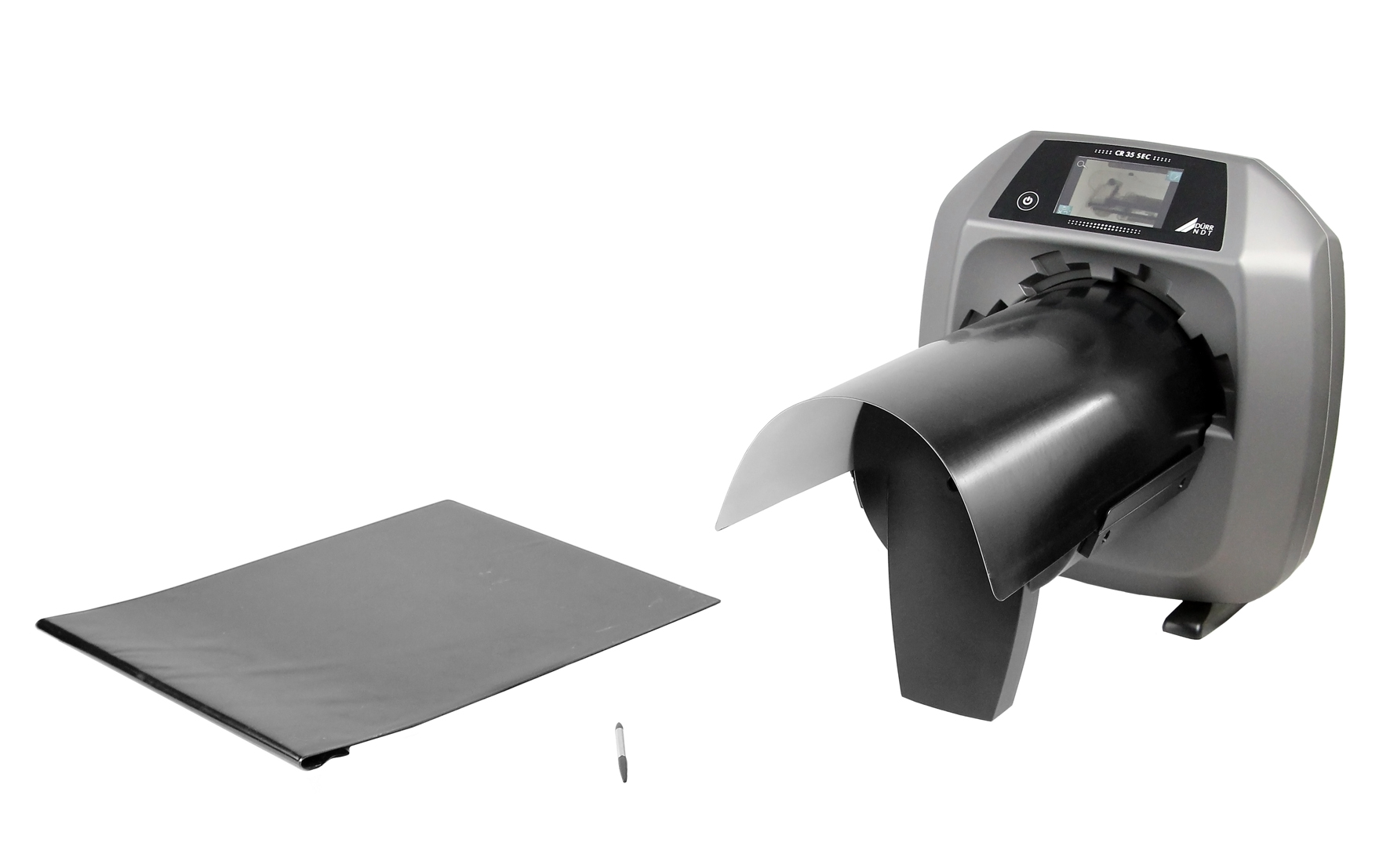

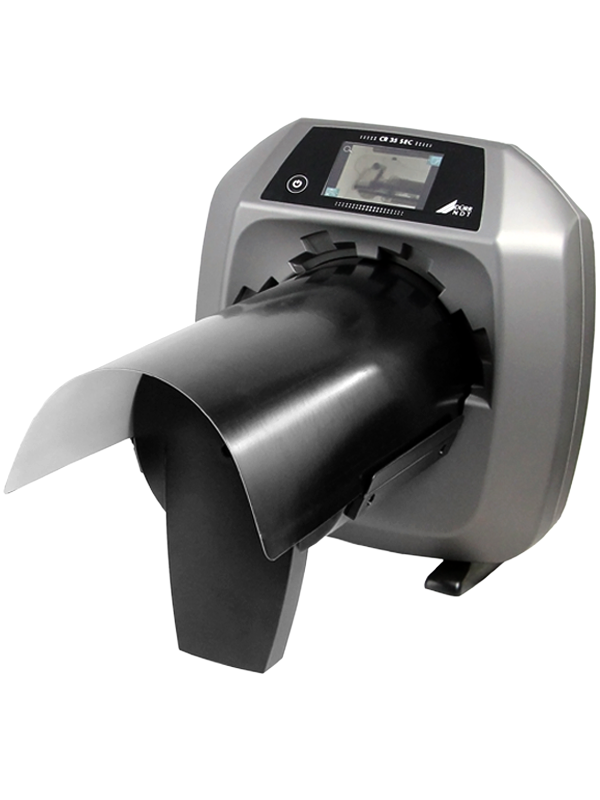

The CR35+ Image Plate Reader scans x-ray image plates in as little as 35 seconds and produces ultra high resolution X-ray images either on its inbuilt 4” screen or in a larger format on a laptop. Its ability to reveal fine wire and electronic component detail in seconds makes it an invaluable system for those needing to make fast accurate decisions in the field and equally for lab-based forensic and analytical tasks.

  • Portable and easy to set up and use in less than 2 minutes
  • Thin Flexible Image plates in a range of sizes from 18 x 24 cm up to 43 x 35 cm
  • Image Resolution from 100 – 50 microns and 10 line pairs minimum
  • Scan and erase the reusable plates in a single pass
  • Robust low maintenance plate scanner with no carousel or clips required during scanning
  • Full ground level imaging capability

Technical

Standard system configuration

CR35+

  • 15.4″ WXGA Screen (1280×800) Glare / WSXGA+ (1680×1050) Glare
  • Intel P8400 Core 2 Duo 2.26Ghz 1066FSB 3MB Mobile
  • Vidia GeForce Go 9600M GT 512MB Video
  • 2Gb DDR2 800 Memory
  • Serial ATA Hard Drive, up to 500GB
  • 160Gb Hard Disk Drive
  • DVD+/- RW Drive
  • Card Reader
  • RJ-45, USB, VGA
  • 10/100 LAN
  • Windows 10 Professional

High Resolution Images

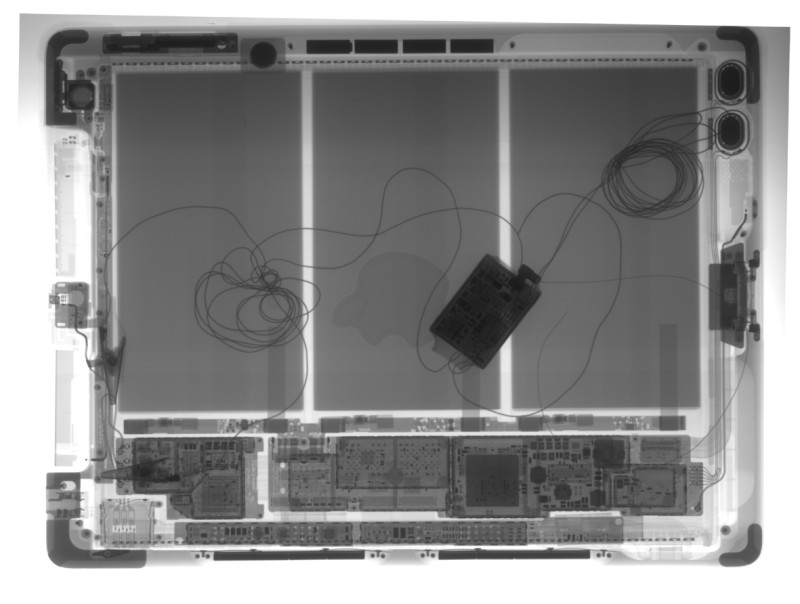

CR35+ uses high sensitivity flexible plates that produce 10 lp/mm, 50 micron images. The X-ray exposure time required is ten times less than needed with polaroid film.

No Reliance on Laptop

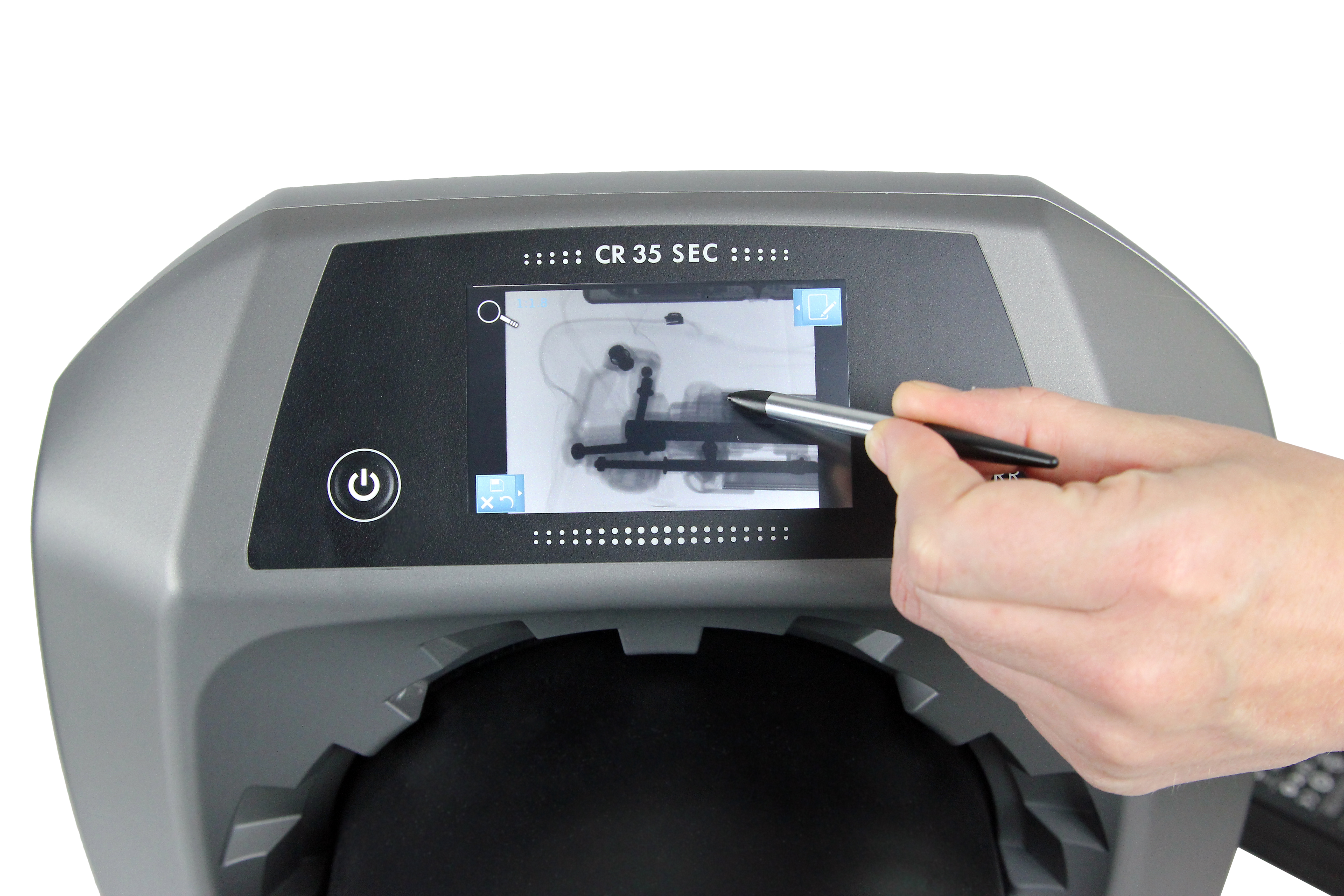

Scanna CR35+ has an integrated 4” touchscreen for fast X-ray image acquisition and viewing without reliance on a connecting laptop. Image options include black and white images, negative and zoom. Images can be viewed on and offline and communicated with other users for in-depth analysis via a removable SD card, Ethernet cable or by wi-fi connection to an external laptop/PC.

Fast Set up and X-ray Image Acquisition

Unload and set up the CR35+ system, shoot X-ray images and read them on screen in less than 2 minutes start to finish.F

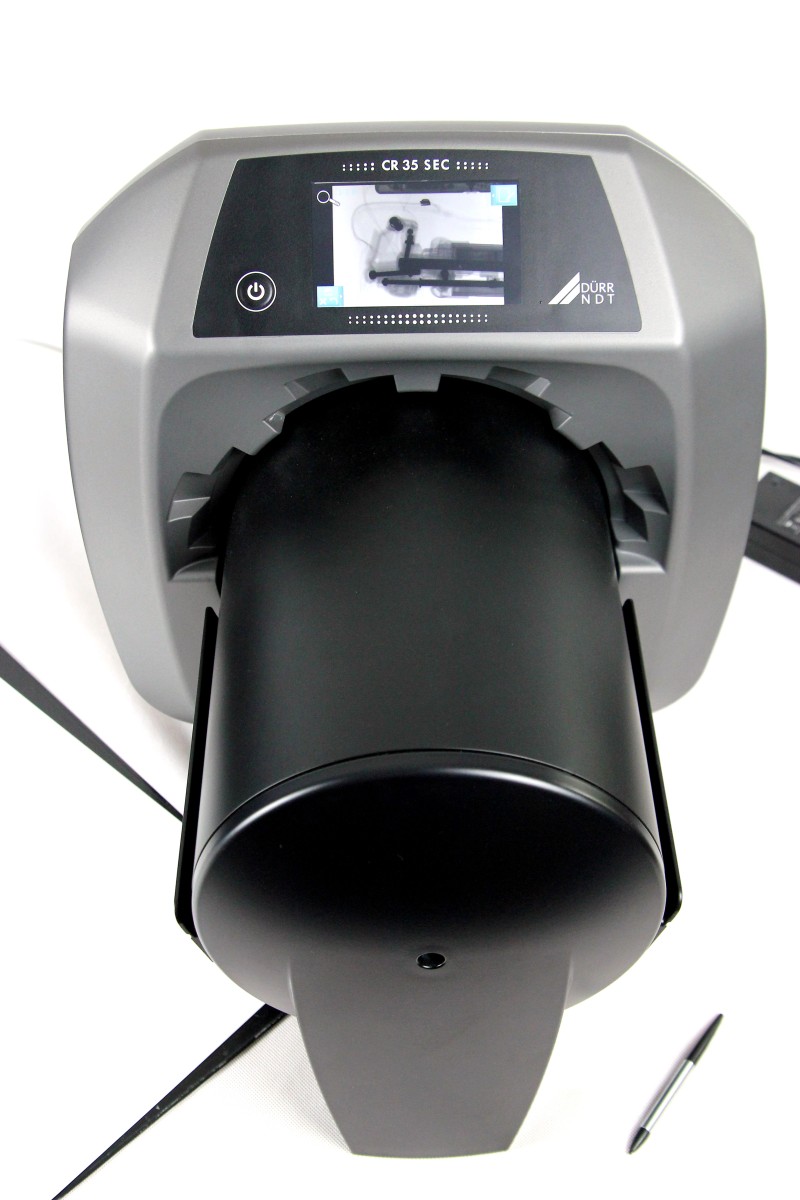

Easy Slide through Scanning

Unlike some X-ray image plate processors, CR35+ has no fixed image plate size, no clips, no carousel and can be used whilst wearing gloves.

Range of Image Plate Sizes

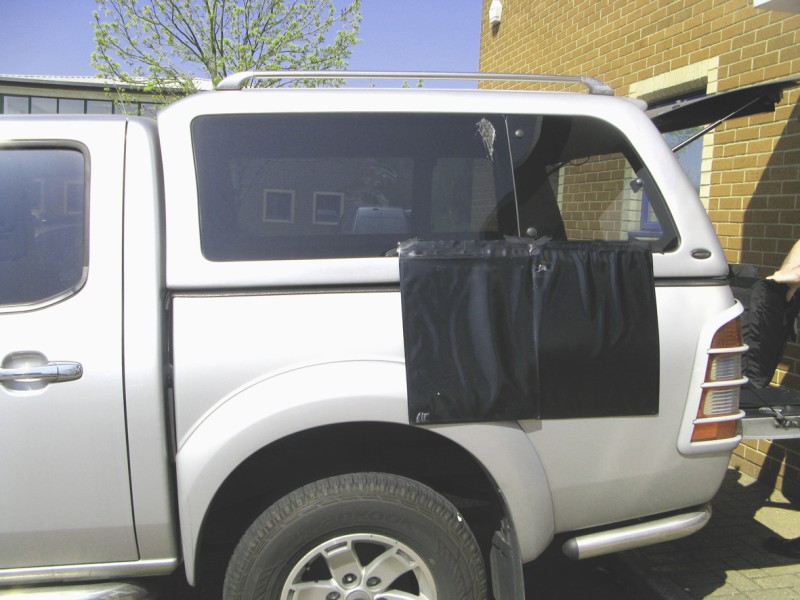

CR X-ray Image Plates are available in a range of sizes: from compact 18 x 24 cm up to a longer length 35 x 130 cm. All plates can be used in multiple combinations with the Flexray Mounting System for checking longer and larger objects, such as a car door in a single X-ray shot.

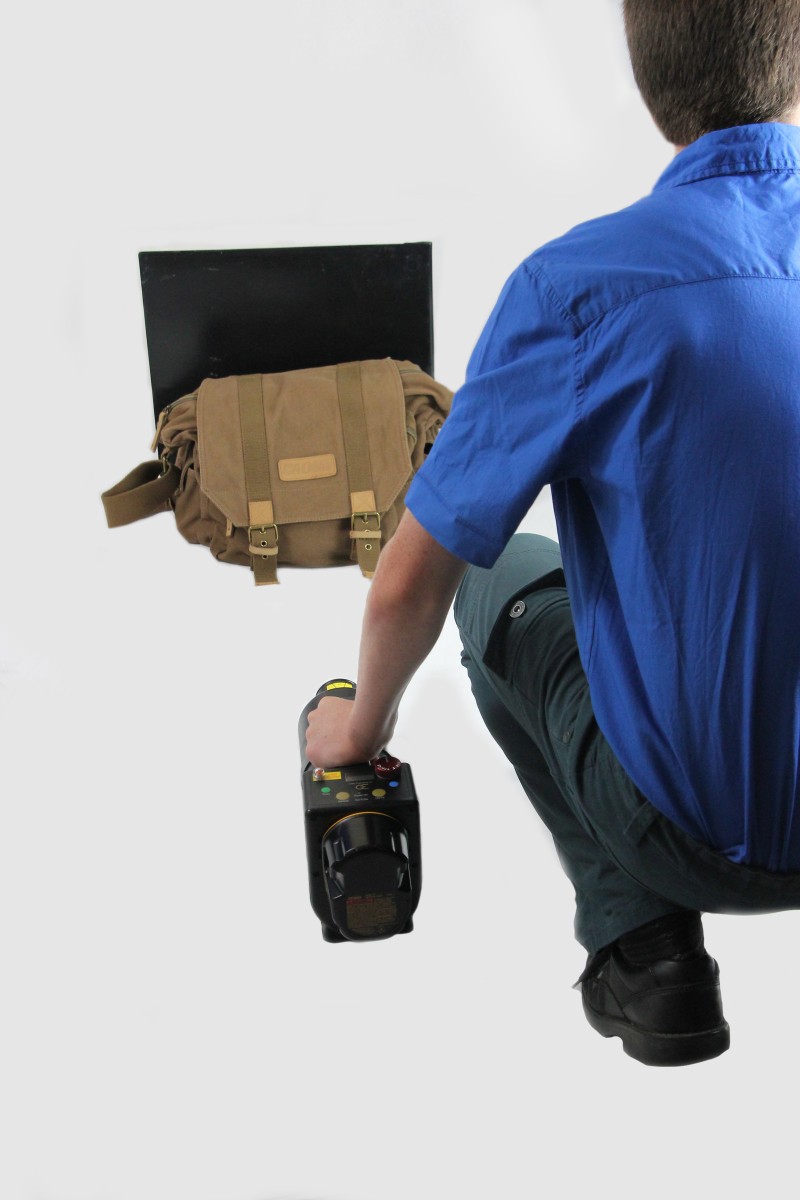

Meets the Needs of Tough Environments

CR X-ray Image Plates are easy to handle and deploy. They are lightweight and flexible and suitable for
use in the most challenging Defence and Security Tasks including EOD, Search and Detailed Forensic Investigation. The image plates are stand alone - no cables and no power required for use.

Reduced Film Costs

The use of Digital Film is cost effective and has low consumable costs compared with other film options. It also allows operators to store and manage X-ray images in a database for improved and easier report writing and evidential record keeping.

Options

  • Optional 802.11n Wireless LAN
  • Other brand name variants and ruggedised MilSpec models with foreign keyboard and OS options are available
  • Flexible Cassettes
  • Protective Covers
  • Rigid Carbon Fibre Cassettes
  • FlexRay Cassettes
