PXRD

Download Datasheet

Engineered to detect and measure pulsed X-rays

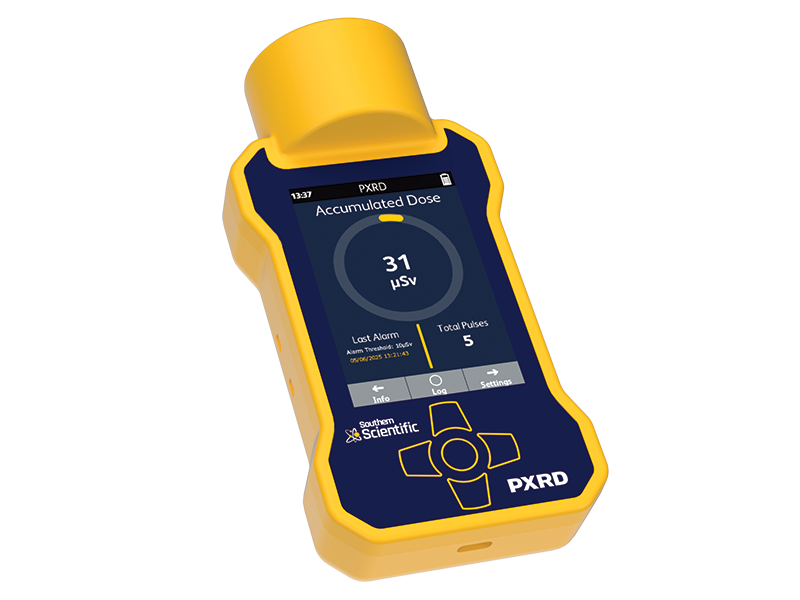

The PXRD is specifically engineered to detect and measure pulsed X-rays emitted by portable X-ray generators such as Golden Engineering’s XR150, XR200, and XRS3, as well as other compatible models.

Compact and handheld, the PXRD is designed for durability and performance in the toughest environments. Its rugged construction ensures reliable operation in all weather conditions and demanding field applications.

Unlike conventional detectors, the PXRD can measure X-ray radiation from pulsed sources with a minimum pulse width of 25 ns. This makes it uniquely suited to applications where pulsed X-ray sources are in use.

Technical

Standard system configuration

Engineered to detect and measure pulsed X-rays

  • PXRD is a rugged, lightweight field instrument weighing just 480 g.
  • Dimensions: 164 x 81 x 51 mm
  • With an IP54 rating, PXRD is protected against dust ingress and water spray, making it a dependable instrument in adverse weather and demanding field conditions.
  • Pulse Duration: 25 ns
  • Energy Range: 40-250 Kv
  • Minimum Detectable Pulse: 0.02-1.2 microsievert per pulse
  • Alarm Function: Audio, Visual, Vibrate
  • Battery Life: Up to 8 hours continuous operation
  • PXRD operates reliably between 0°C and 40°C
  • PXRD features a chemically resistant keypad for durability and easy decontamination.
  • PXRD can be comfortably used in hand or mounted on a tripod for remote monitoring

PXRD Applications

The PXRD should be deployed whenever pulsed X-ray sources are in operation, including (but not limited to):

  • Security screening
  • Non-destructive testing (NDT)
  • Field-based inspection and diagnostics
  • Emergency response and EOD operations.

Options

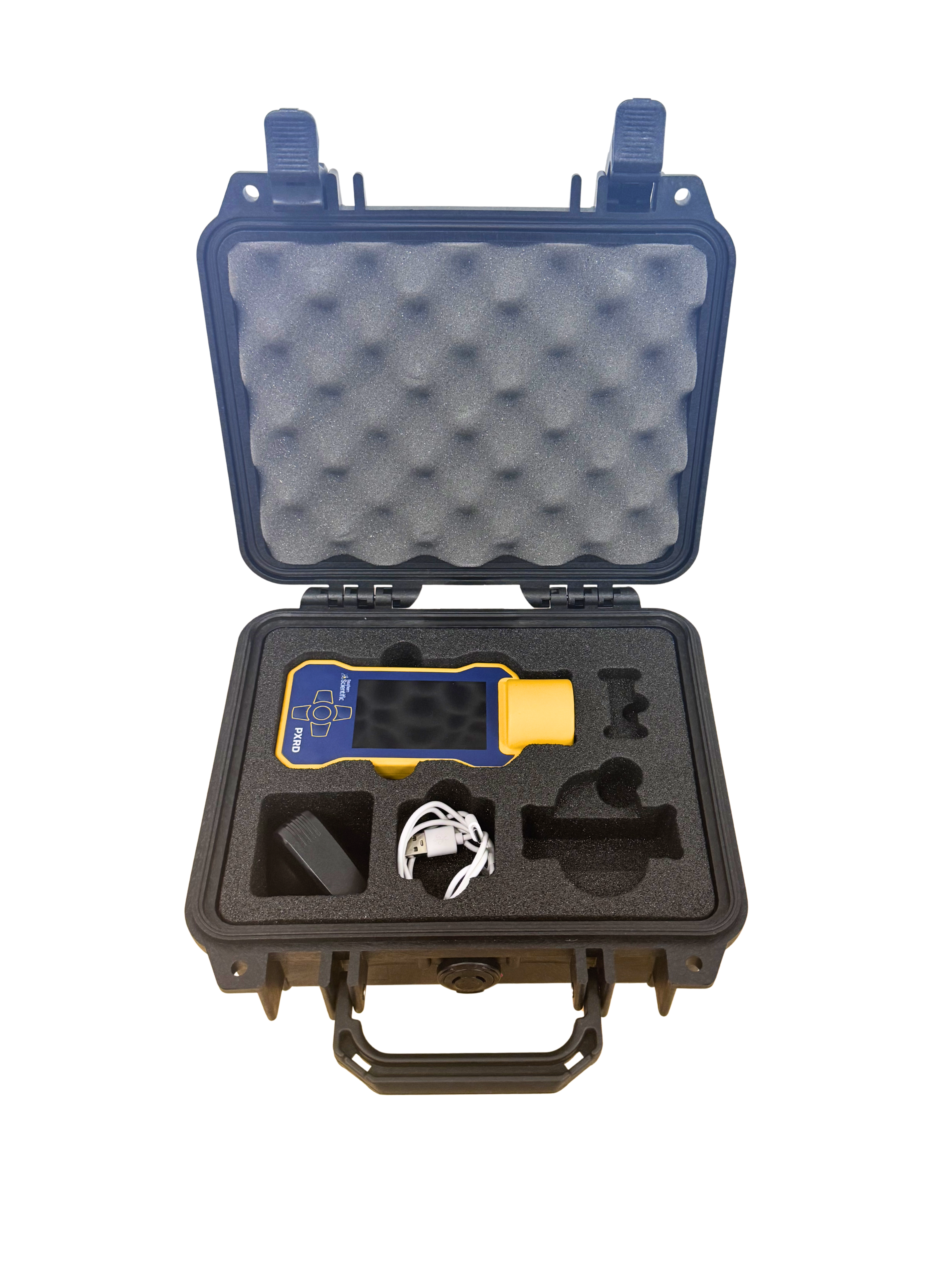

  • Rugged Pelicase
  • Tripod
