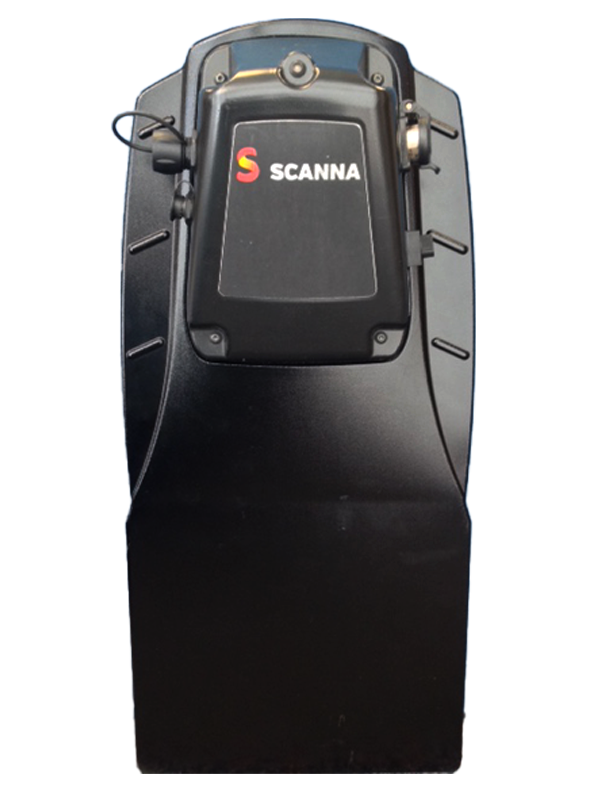

Scanwedge Ultra is a new lightweight rugged manportable x-ray panel with an
8 x 10” (20 x 25 cm) imaging area. Unlike other CCD x-ray imagers, Scanwedge Ultra can easily slide behind objects close to a wall and into narrow gaps less than 1” thick.

Scanwedge Imaging Panels are extremely robust with no moving parts and no fragile glass components. The x-ray detector panel operates via cable or Wi-Fi connection and without the separate bulky control box that many flat panel x-ray systems require. The new high sensitivity camera provides higher resolution images resulting in improved detection of threats

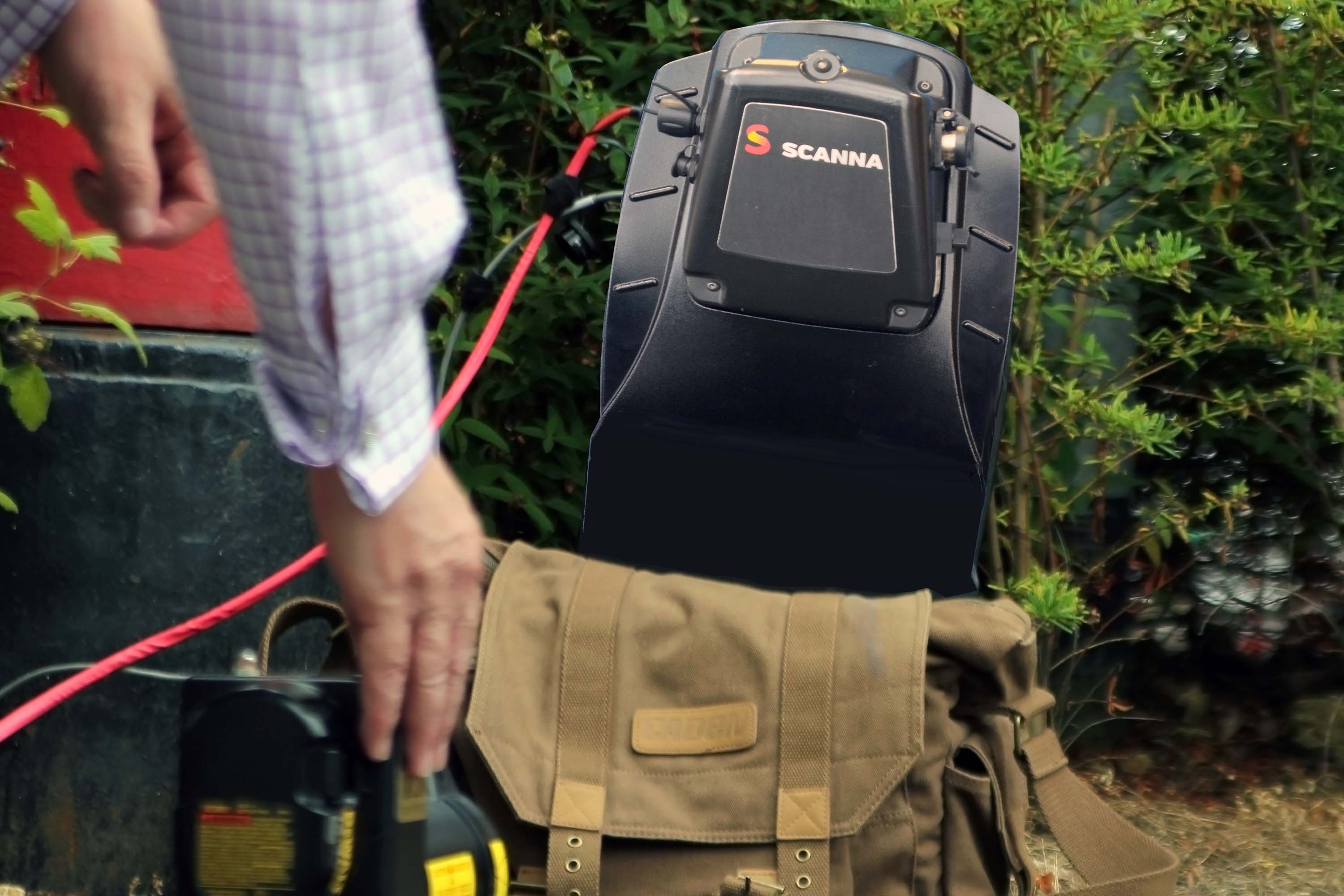

The complete Scanwedge Ultra x-ray system is perfect rapid deployment x-ray tool for any defence and security search professional as it comprises just 3 components (x-ray generator, imaging panel and laptop/tablet) which can be set up in less than 2 minutes. The system is backpackable and performs equally well for suspect package checks in built up urban areas as for C-IED tasks in dangerous conflict zones.

Applications include IED/EOD, search and investigation, unattended baggage checks, and for detecting weapons and hidden contraband material.

  • Scanwedge is designed to be easy to set up and operate in under 5 minutes. It combines just 3 core components – X-ray imager, X-ray generator and laptop
  • Scanwedge is lightweight, rugged and man-portable. The compact flat panel is designed for easy access in confined areas
  • The X-ray generator is controlled from a distance using the system’s Scanview software. Multiple X-rays of varying exposure times can be taken in seconds without the need to re-approach
  • Scanwedge is compatible with both Golden pulsed X-ray generators and industrial X-ray sources
  • Scanwedge is a real time X-ray system and does not require any expensive consumables or processing equipment


Standard system configuration


  • Integrated X-ray Control and Fire via companion laptop or tablet for fast ‘Place and Fire’ Deployment. X-ray Generator connects both wired or wirelessly
  • Ultra fast X-ray Image Data Transmission back to laptop/tablet. Image data can be transferred by ethernet cable or wirelessly
  • Lightweight backpackable system - Ideal for field use
  • Near edge imaging lets you capture more of what you need to see
  • Ultra Rugged with no moving and no fragile glass parts - Suitable for operation in challenging and difficult environments or where rough handling is likely
  • Backpackable for special ops and/or with rugged wheeled case which doubles as a workstation

Power Source

100-240 VAC


54 (h) x 27 (w) Depth of Panel at Imaging Area: 1.8 cm

Imaging Area

20 x 25 cm (8 x 10”)


5.2 kg


High Performance CCD


  • Scanwedge is supplied in a wheeled ruggedised, weather resistant case with 50m cable reel
  • A lightweight backpack for rapid or lightweight deployment operations is available as an option
  • Scanwedge is supplied with a high performance laptop running Windows 10 Professional
  • Minimum spec: Intel Dual Core Processor, 500 GB Hard Drive, 4 Gb Memory
  • Other brand name variants and ruggedised MilSpec models with foreign keyboard and OS options are available
  • Wireless option (802.11G)
