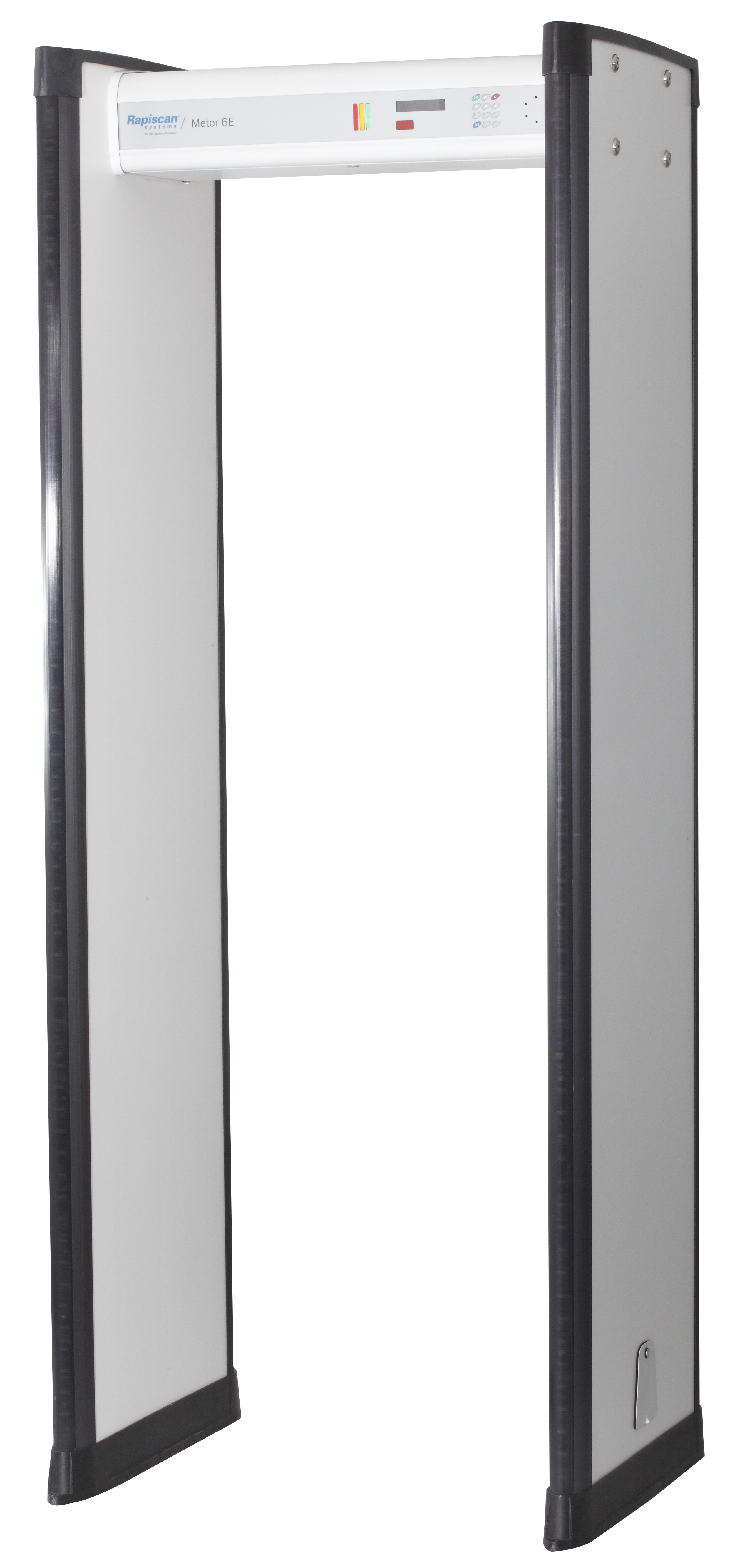

Metor 6E

High Security Metal Detector

Metor 6E is a state-of-the-art walk-through metal detector developed for the most demanding high profile security screening applications. The unit has been developed using the latest technology to meet the strictest requirements set by the international civil aviation authorities.

Typical Metor 6E applications include passenger screening at airports and other transportation terminals as well as visitor screening in public and private buildings such as government buildings, ministries, embassies, detention centrees and prisons


Standard system configuration

High Security Metal Detector

  • 60 Detection Zones
  • 2D Detection - 20 vertical zones and 3 lateral zones (left, centre, right of body)
  • Easy to Set up and Operate
  • Excellent Immunity to environmental interference
  • British Airport Standard

Power Supply:
Mains, nominal: 100 – 240 VACMains, maximum: 90 – 264 VAC
Mains frequency (nominal): 50/60 Hz
Battery (optional): 12 VDCPower consumption, typical: 31 W (AC), 26 W (DC)

Width: Interior: 76 cm/30 in., with crosspiece extension kit (available for ADA compliance) 81 cm/32 in.
Exterior: 90 cm/35 in., with crosspiece extension kit 95 cm/37 in.

Interior: 205 cm/81 in.
Exterior: 224 cm/88 in.

65 kg (143 lbs)


  • Battery Back Up
  • Radiation Detection Add on

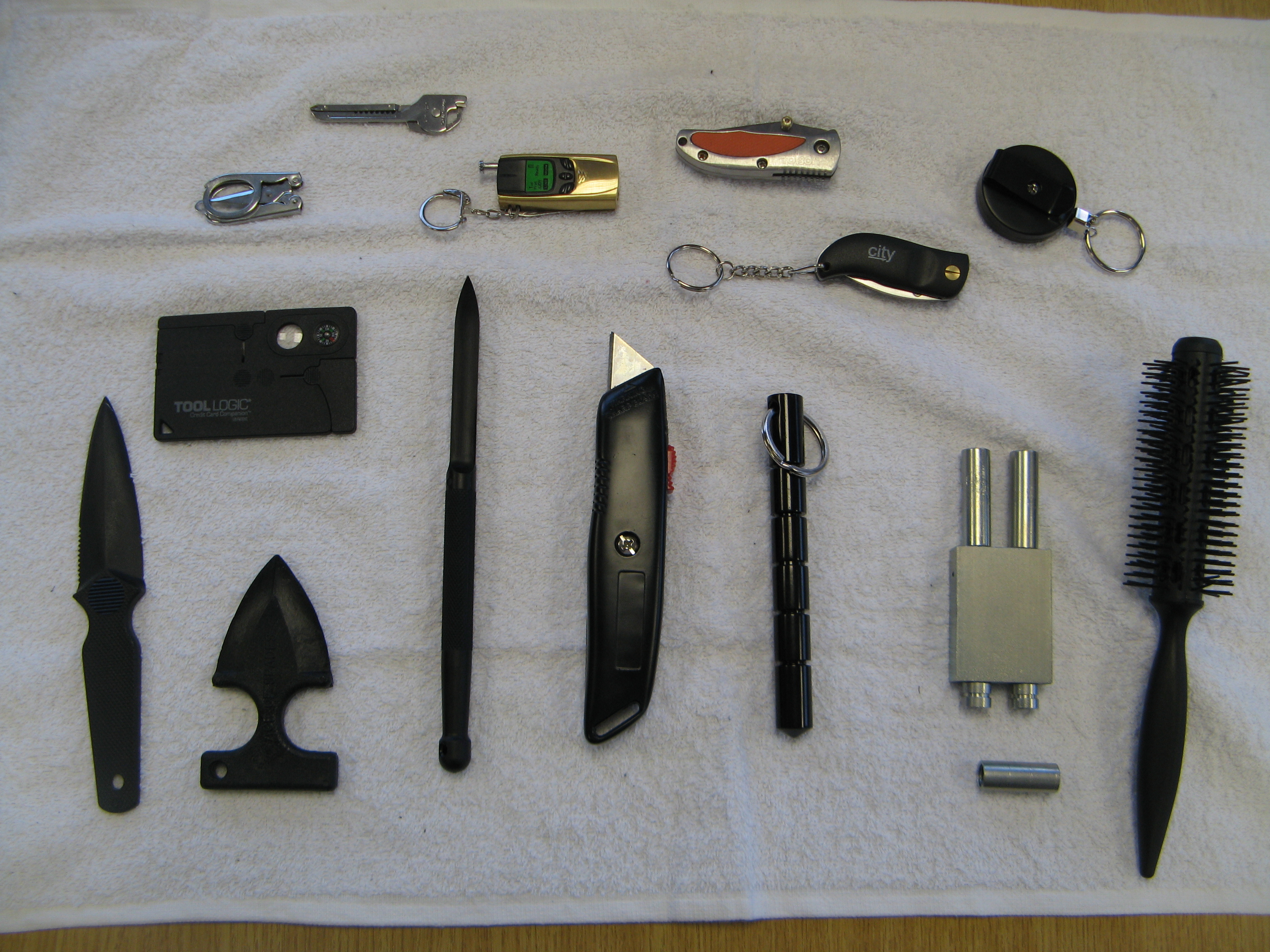

  • Test Piece
