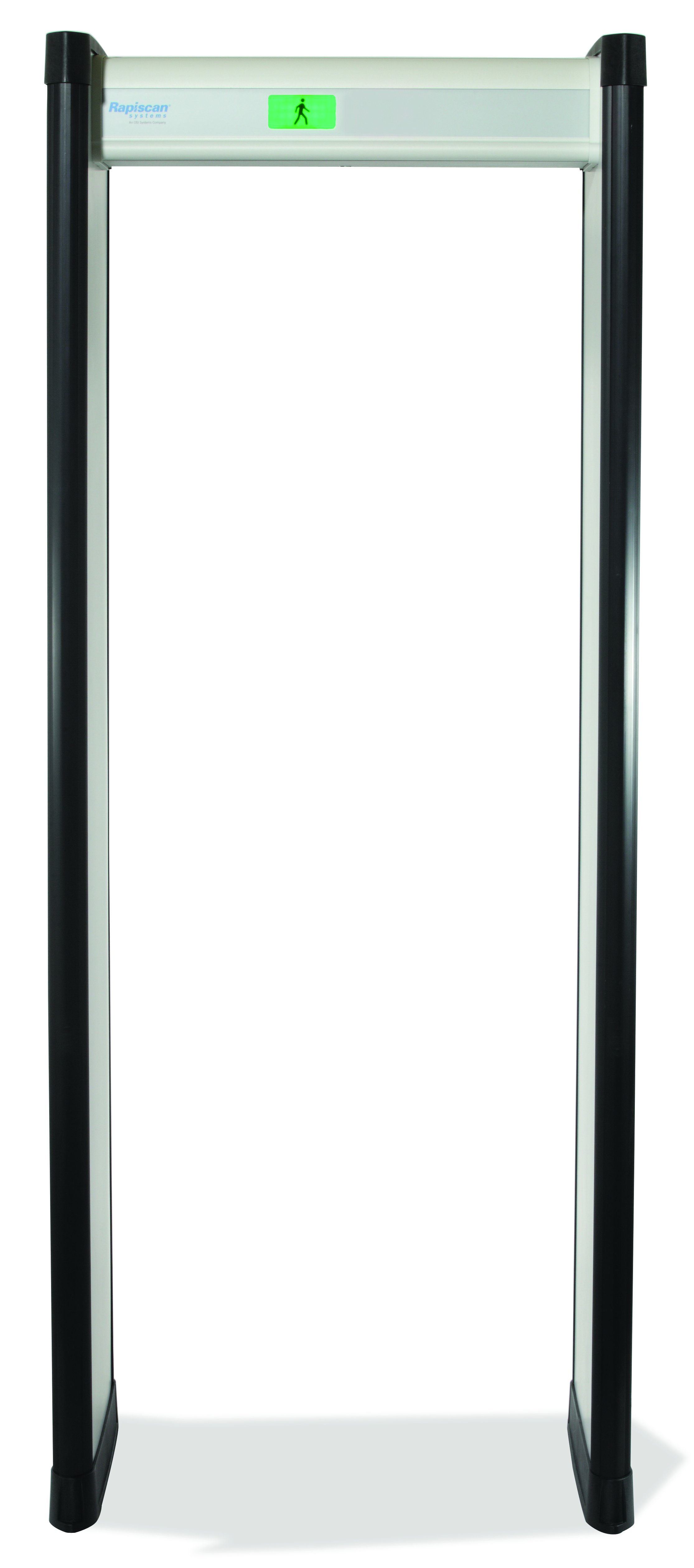

Metor 6M

High Performance Metal Detector Arch

The Metor 6M is a multi-purpose multi-zone walk-through metal detector used primarily for weapons detection at access control points and security checkpoints.

Typical applications include passenger screening at airports and seaports, visitor screening at courthouses, government buildings and prisons, access control in conferences, public buildings, sporting or other special events, stadiums and concerts, employee and visitor screening in power plants or factories, loss prevention in different industrial applications as well as screening in hotels, restaurants, casinos, and night clubs.

Technical

Standard system configuration

High Performance Metal Detector Arch

Power Supply:

90V to 265V AC/50-60 Hz

Current Draw:

50W AC, 40W DC
Power Cord Length: 2.5 m

Dimensions: Assembled:
H (internal) 205 cm x W (internal) 76 cm
H (external) 224 cm x W (external) 90 cm x D 70 cm

Weight:

58.8 kgs (129.6 lbs)

Safety:

Magnetic media: Will not damage magnetic tape, computer discs, CDs DVDs, video tape, ID cards, Credit Cards

Standards: Metor 6M is designed to meet regulatory standards: FAA, NILECJ-0601.00

EMC: EMC compliant (CE)

Pacemakers:
Safe for wearers of heart pacemakers
