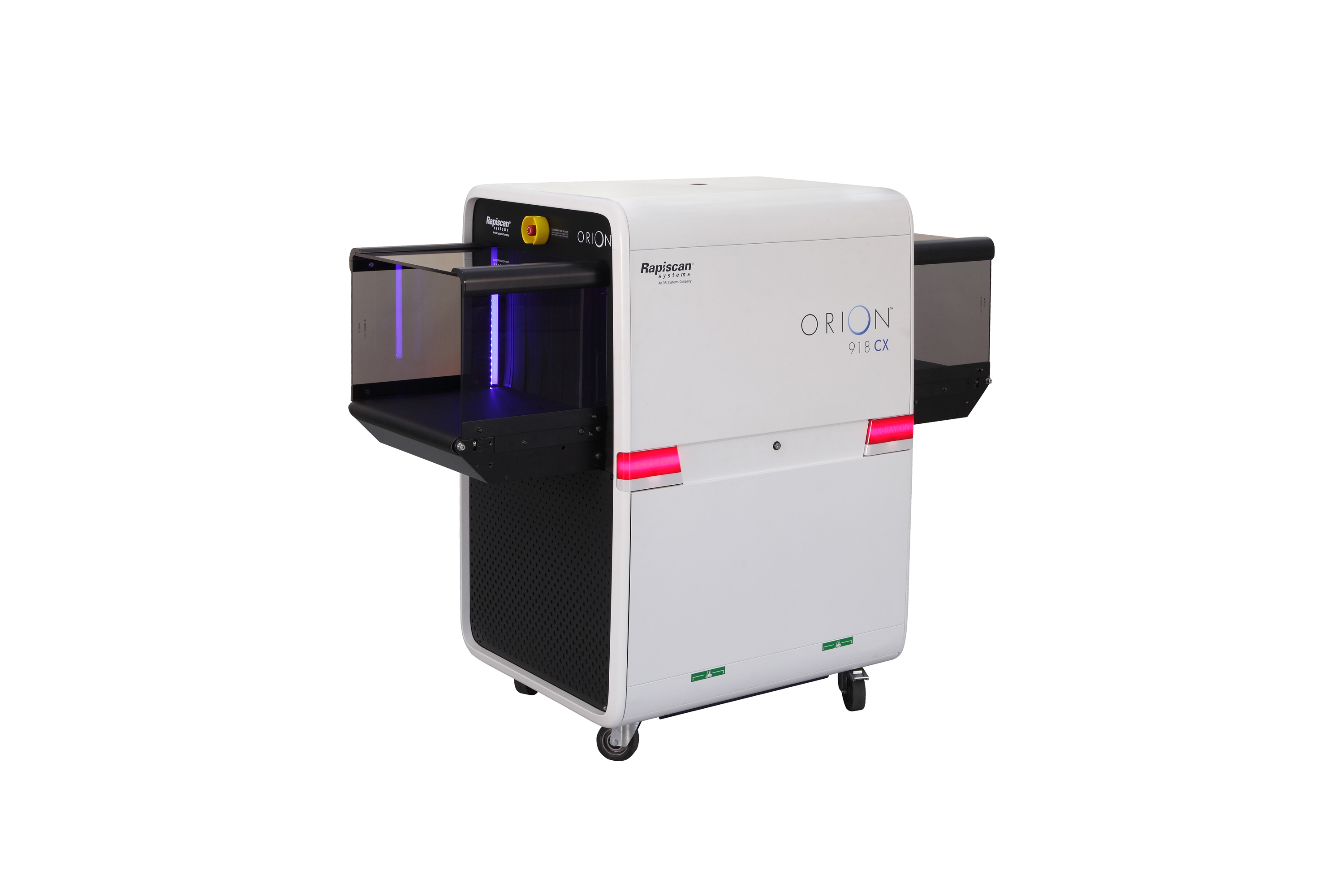

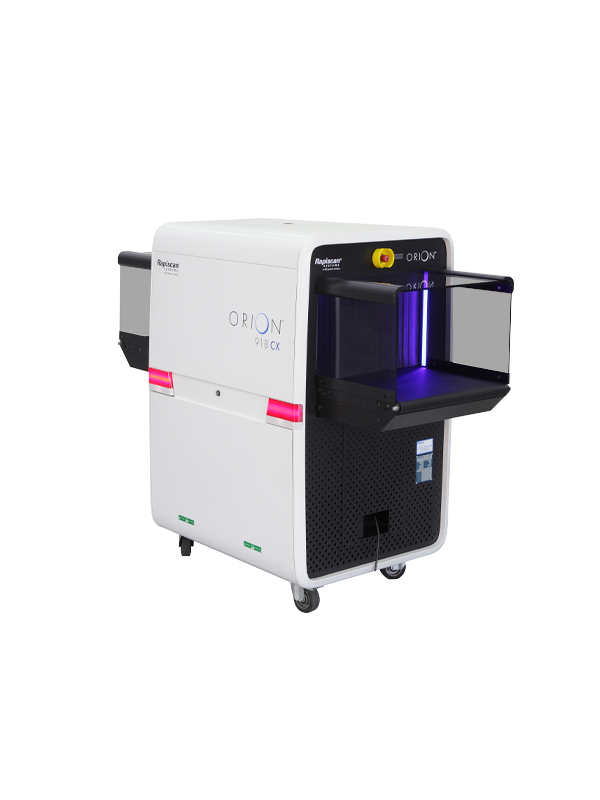

Rapiscan 918CX

Rapiscan 918CX

The new 918CX is a High Performance, compact and versatile 540mm by 360mm tunnel X-Ray system with exceptional image quality and excellent threat detection alert capabilities.

  • Industry Best Resolution and Material Discrimination
  • Explosives and Narcotics Detection
  • Low Density Image Enhancement
  • Matrixing, Networking and Remote Viewing


Standard system configuration

Rapiscan 918CX

  • Length: 2157 mm
  • Width: 794 mm
  • Height: 1356 mm
  • Tunnel Size (WxH): 540 mm x 360 mm
  • Net Weight: 414 kgs
  • Resolution: 38-40 AWG
  • Penetration: 31-33 mm steel standard, 35 mm high penetration option
  • Conveyor Speed: 0.2 m/sec. Max load 165 kgs
  • Power Requirements: 115/230V +/-10% 50/60 Hz

Spectrum 4 Colour Imaging

918CX can present images to the operator in the Classic 4-colour and the new proprietary Spectrum 4-colour (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.

Dual Mode Z Eff

This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel.

Explosives and Narcotics Detection

Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

European Aviation Compliance

918CX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.


  • Explosive threats, narcotics and density alerts
  • Spectrum 4
  • 17 Image processing features
  • SINERGY low density enhancement
  • Dual Mode Z-effective
  • CrystalClear
  • Automatic, Enhanced Image Archiving
  • Remote Status Monitoring
  • Remote Archive Review
  • Multi-System Alarm Resolution Network
  • 13 Languages
  • 64-bit Operating System
